Is the Adaptor - tee with GZ NPT, stainless steel, type A308 suitable for corrosive environments and seawater applications?

Adaptor - tee with GZ NPT, stainless steel, type A308 (AISI 316L) offers good resistance to many corrosive environments and is commonly used in seawater applications, but suitability depends on specific conditions. Why it can be suitable: - Material: AISI 316L stainless steel contains molybdenum, improving resistance to chloride-induced corrosion compared with 304 stainless steel. - General seawater use: 316L is frequently used for components exposed to seawater and marine atmospheres and performs well in moderately aggressive chloride environments. - High-pressure fittings: As a high-pressure tee, it is designed for robust mechanical performance in demanding installations. Limitations and considerations: - Localized corrosion: In stagnant seawater, crevices, deposits, or low-oxygen zones, 316L can suffer pitting and crevice corrosion. Threaded joints and teed geometry create potential crevice sites. - Stress corrosion cracking (SCC): In warm, highly chlorinated or polluted seawater, SCC risk increases, especially under tensile stress. - Galvanic corrosion: If connected to dissimilar metals, galvanic corrosion can occur unless electrically isolated or compatible materials are used. - Protective measures: For aggressive or long-term seawater service, consider more corrosion-resistant alloys (e.g., Duplex or Super Duplex stainless steels, Hastelloy), cathodic protection, coatings, regular maintenance, or design changes to avoid crevices. Conclusion: Adaptor - tee with GZ NPT, stainless steel, type A308 (AISI 316L) is generally suitable for many corrosive and seawater applications, particularly moderate conditions, but evaluate exposure severity, temperature, flow, crevice risk, and dissimilar metals. For severe or long-term seawater exposure, consider higher-alloy materials or protective measures.

Does the Adaptor - tee with GZ NPT, stainless steel, type A308 support high-pressure hydraulic systems with NPT thread sealing?

Yes. The Adaptor - tee with GZ NPT, stainless steel, type A308 (Adaptor - high-pressure tee type A308 with external thread 3 x NPT, seal on the thread, Material: AISI 316L steel) is designed for high-pressure hydraulic systems using NPT thread sealing. Constructed from corrosion-resistant AISI 316L stainless steel and featuring three external NPT threads that seal on the thread, it is suitable for high-pressure hydraulic applications where thread-sealing NPT connections are required. Ensure compatibility with your systemâs exact pressure rating and use appropriate thread sealant or PTFE tape per installation guidelines.

Can the Adaptor - tee with GZ NPT, stainless steel, type A308 be used with food-grade hydraulic fluids?

Yes. the Adaptor - tee with GZ NPT, stainless steel, type A308 can be suitable for use with food-grade hydraulic fluids, with some important considerations. Why itâs suitable: - Material: Made of AISI 316L stainless steel, which is widely used in food and beverage, pharmaceutical, and sanitary applications due to its excellent corrosion resistance and chemical compatibility with many fluids, including common food-grade hydraulic oils. - Construction: High-pressure design and external NPT threads (seal on the thread) provide robust mechanical performance suitable for hydraulic systems. Important conditions and checks: 1. Fluid compatibility: Confirm the specific food-grade hydraulic fluidâs compatibility with 316L stainless steel and any sealants or thread sealants used. Most PAO, ester-based, and some vegetable-oil hydraulic fluids are compatible, but verify with the fluid manufacturer. 2. Sealing materials: The product description notes sealing on the thread. Ensure any thread sealant (PTFE tape, anaerobic sealant, etc.) and any internal seals in the system are food-grade and compatible with the hydraulic fluid and operating temperatures/pressures. 3. Cleanliness and surface finish: For food applications, surface finish and cleanliness levels may be required. Verify that the A308âs surface finish and cleanliness meet any regulatory or customer-specific hygiene standards. 4. Regulatory requirements: Check applicable food-contact regulations (e.g., FDA, EU) and industry-specific certifications. AISI 316L is generally acceptable, but the entire assembly and any lubricants/sealants must comply. 5. Operating parameters: Verify pressure, temperature, and mechanical loading are within the A308âs rated limits for safe operation with your chosen fluid. Conclusion: Adaptor - tee with GZ NPT, stainless steel, type A308 (AISI 316L) is broadly appropriate for food-grade hydraulic fluids provided you confirm fluid compatibility, use food-grade thread sealants and seals, ensure required cleanliness/surface finish, and meet applicable regulatory and operating requirements.

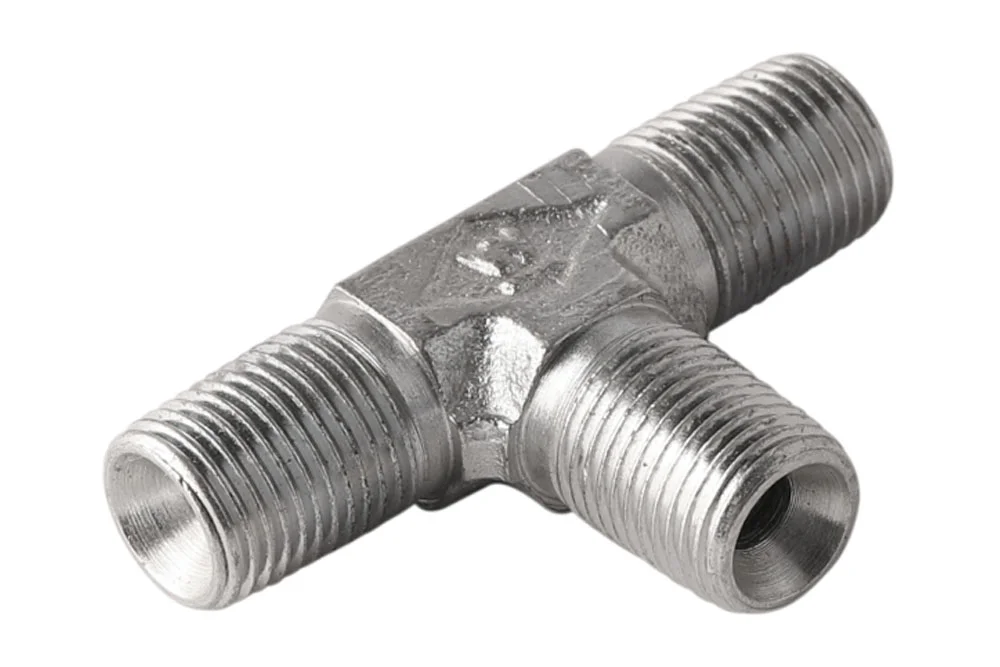

Adattatore – tee con GZ NPT, acciaio inox, tipo A308

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	SS – acciaio inox

Adattatore – tee alta pressione tipo A308 con 3 filetti esterni NPT (tenuta su filetto). Materiale: acciaio AISI 316L.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A308-02-SS	Raccordo a T 3 x M NPT 1/8", AISI 316	-	345	In stock	Richiesta
TI-A308-04-SS	Raccordo a T 3 x filettatura maschio NPT 1/4", AISI 316	-	345	In stock	Richiesta
TI-A308-06-SS	Raccordo a T 3 x maschio NPT 3/8", AISI 316	-	276	In stock	Richiesta
TI-A308-08-SS	Raccordo a T 3 x M NPT 1/2", AISI 316	-	241	In stock	Richiesta
TI-A308-12-SS	Raccordo a T 3 x filetto maschio NPT 3/4", AISI 316	-	155	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore – tee alta pressione tipo A308 con 3 filetti esterni NPT (tenuta su filetto). Materiale: acciaio AISI 316L.

Additional information

Materiale	SS – acciaio inox

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
