Is the Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 suitable for high-pressure hydraulic systems and what is its maximum working pressure?

Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 is designed as a 90Â° high-pressure adapter with external BSPT thread (seal on the thread) and external BSP thread (seal on the 60Â° cone). Made of carbon steel and galvanized, it is intended for use in high-pressure hydraulic applications. The maximum working pressure depends on size and specific manufacturer ratings (material, thread form and production tolerances) but typical carbon-steel 90Â° BSPT/BSP adapters of this construction are commonly rated up to 350â420 bar (5,000â6,000 psi). For safe selection and operation always confirm the exact maximum working pressure and applicable safety factors from the manufacturerâs datasheet or certificate for the specific A110 part number and size before installation.

Does the Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 require thread sealant or tape for the BSPT connection?

Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110: The BSPT (tapered) connection seals on the thread, so proper thread sealant or tape is required to achieve a pressure-tight joint unless a mating female port is specified to seal on the taper without additional sealant. The BSP (parallel) connection seals on the 60Â° cone, so that end does not require thread tape/sealant when mated to the correct conical-sealing female fitting.

Can the Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 be used with stainless steel fittings or different materials?

Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 is specified as carbon steel, galvanized. Using it with stainless steel fittings or fittings of different materials is possible but requires caution: - Dissimilar metals and galvanic corrosion: Carbon steel (galvanized) mated with stainless steel can create a galvanic couple in the presence of an electrolyte (moisture), accelerating corrosion of the less noble metal (typically carbon steel or its zinc coating). In aggressive environments (marine, humid, chemical) this can shorten service life. - Mechanical compatibility: Thread types (external BSPT and external BSP with 60Â° cone sealing) must match corresponding female fittings. Ensure mating parts have the correct thread form and sealing surfaces; mismatched materials do not change required thread compatibility. - Seal integrity and wear: The A110 uses thread sealing on the BSPT side and a 60Â° cone seal on the BSP side. Harder materials (stainless) against galvanized carbon steel may cause different wear patterns; ensure proper torque and avoid over-tightening to prevent damage to the cone or zinc layer. - Pressure and temperature: Verify that the combination of materials meets the systemâs pressure and temperature requirements. Differences in thermal expansion and strength between carbon steel and stainless steel can affect joint integrity under thermal cycling. - Chemical compatibility: Check fluid compatibility with both carbon steel (galvanized) and the other material. Some fluids or cleaning agents can attack zinc or stainless grades differently. Recommendations: 1. Prefer using like-for-like materials when possible (stainless-to-stainless) in corrosive or critical applications. 2. If mixing is necessary, consider isolating the metals (non-conductive washers, sealants, or coatings) or use fittings with compatible plating/coating. 3. Confirm thread types and pressure ratings match. 4. Consult manufacturer or material engineer for specific environment, media, and service conditions. In summary, Adaptor - angled nipple 90Â° from GZ BSPT/GZ BSP, carbon steel, type A110 can be used with stainless steel or other materials but assess galvanic corrosion risk, mechanical compatibility, sealing behavior, and service conditions before doing so.

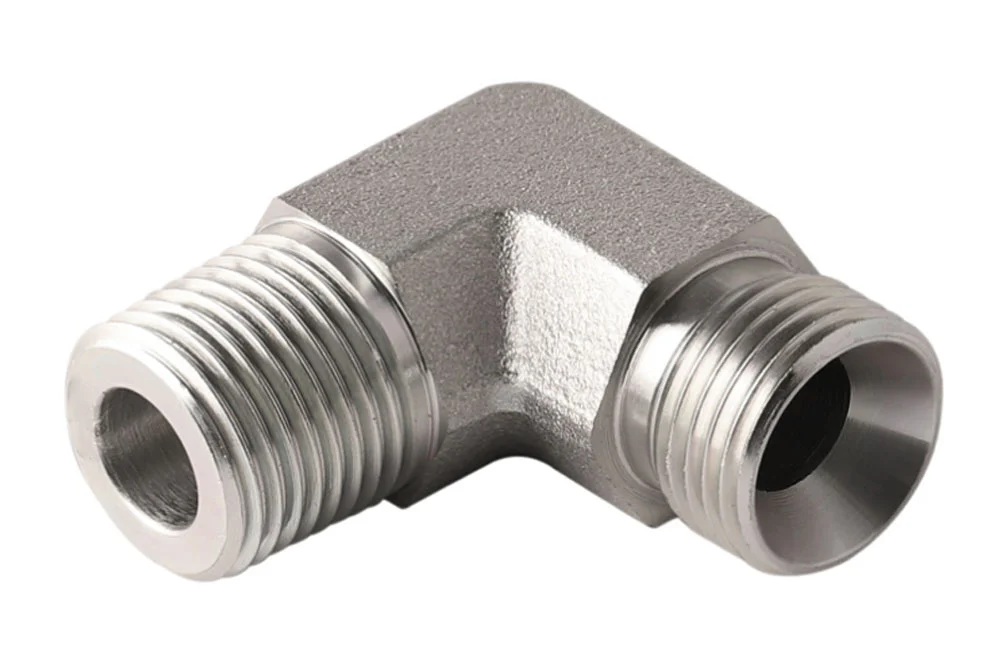

Adattatore – nipplo angolato 90° da GZ BSPT/GZ BSP, acciaio al carbonio, tipo A110

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

Adattatore ad alta pressione 90°, tipo A110, con filetto esterno BSPT (tenuta sul filetto) e filetto esterno BSP (tenuta suico 60°). Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A110-02	Adattatore a 90Â° GZ BSPT 1/8" / GZ BSP 1/8"	-	350	In stock	Richiesta
TI-A110-04	Adattatore 90Â° GZ BSPT 1/4" / GZ BSP 1/4"	-	350	In stock	Richiesta
TI-A110-06	Adattatore 90Â° GZ BSPT 3/8" / GZ BSP 3/8"	-	250	In stock	Richiesta
TI-A110-08	Adattatore 90Â° GZ BSPT 1/2" / GZ BSP 1/2"	-	225	In stock	Richiesta
TI-A110-12	Raccordo a 90Â° GZ BSPT 3/4" / GZ BSP 3/4"	-	200	In stock	Richiesta
TI-A110-16	Adattatore 90Â° GZ BSPT 1" / GZ BSP 1"	-	160	In stock	Richiesta
TI-A110-20	Adattatore 90Â° GZ BSPT 1.1/4" / GZ BSP 1.1/4"	-	160	In stock	Richiesta
TI-A110-24	Adattatore 90Â° GZ BSPT 1.1/2" / GZ BSP 1.1/2"	-	160	In stock	Richiesta
TI-A110-32	Adattatore a 90Â° GZ BSPT 2" / GZ BSP 2"	-	100	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore ad alta pressione 90°, tipo A110, con filetto esterno BSPT (tenuta sul filetto) e filetto esterno BSP (tenuta suico 60°). Materiale: acciaio al carbonio, zincato.

Additional information

Materiale	CS – acciaio (ghisa)

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
