Is the 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T compatible with high-pressure hydraulic systems and does its BSP/BSPT sealing method suit my application?

The 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T is designed for high-pressure hydraulic use typical of JIS/TOYOTA fittings. Carbon steel construction and galvanization indicate good mechanical strength and corrosion resistance suitable for many hydraulic systems, but final suitability depends on your systemâs maximum pressure, temperature, and fluid compatibility . verify the adaptorâs rated working pressure and temperature range against your system specifications. Regarding sealing: this adaptor has two different sealing methods.on the BSP (external BSP thread) side it uses an inverted cone 60Â° metal-to-metal seal (suitable for high-pressure, leak-resistant joints when paired with the correct female seat), while the BSPT (external BSPT thread) side seals on the thread (tapered thread seal). BSP inverted-cone metal seals are reliable for high-pressure hydraulic connections if female counterpart and seating surface are in good condition. BSPT thread sealing typically requires additional thread sealant (PTFE tape or liquid sealant) and can be acceptable for hydraulic use but is generally less ideal than dedicated metal-seat designs for the highest pressures or critical leak-free applications. Recommendation: confirm the adaptorâs pressure rating and matching female connectors (60Â° cone seat for the BSP side), and if you use the BSPT side, apply a suitable hydraulic-grade thread sealant. If your system demands the highest leak-tightness or very high pressures, consider an adaptor that provides metal-to-metal seals on both ends.

Does the 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T require specific installation torque for BSP/BSPT sealing?

Yes. The 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T requires correct installation torque for reliable sealing because it uses two different sealing methods: the BSP external thread seals on an inverted 60Â° cone (metal-to-metal), and the BSPT external thread seals on the thread (tapered). For the cone seal, tighten to the manufacturerâs recommended torque to achieve proper metal-cone contact without deforming the cone; for the BSPT tapered thread, apply appropriate torque plus correct thread sealant (or PTFE tape rated for tapered pipe threads) as specified by the system designer or supplier. If supplier torque values are not available, follow general guidance for the thread size and material-do not overtighten to avoid thread damage and leakage; use calibrated tools and verify pressure-rated leak testing after assembly.

Can the 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T be used with different hydraulic fluids?

Yes. the 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T can generally be used with a range of hydraulic fluids, but suitability depends on fluid compatibility with the materials and sealing method. Key points: - Base material: carbon steel (galvanized). Carbon steel is compatible with many hydraulic oils (mineral oils, some synthetic oils) but can corrode with water-based fluids, aggressive solvents, or certain phosphate esters unless special protective measures are used. The galvanizing provides some corrosion resistance but is not a substitute for material compatibility with aggressive fluids. - Sealing types: the A405T has an inverted cone 60Â° seal on the BSP side and thread sealing on the BSPT side. Thread sealing effectiveness depends on the sealing compound or tape used and the fluidâs chemical properties. Some fluids (e.g., phosphate esters, water-glycols) may attack sealants or require specific seal materials. - Temperature and pressure: ensure the fluidâs temperature and pressure ranges fall within the adaptorâs rated limits for carbon steel and for the sealing arrangement; higher temperatures can degrade seals and coatings. - Recommended checks: consult the fluid manufacturerâs compatibility data for carbon steel, galvanizing, and any thread sealant. Verify seal material (if present in mating components) is compatible with the chosen fluid. For water-based, highly acidic/alkaline, or phosphate ester fluids, consider stainless steel or specially coated fittings and compatible sealants. Conclusion: For standard mineral and many synthetic hydraulic oils, the 90Â° JIS Toyota adaptor - elbow from GZ BSP x GZ BSPT, carbon steel, type A405T is typically suitable. For aggressive, water-based, or phosphate-ester fluids, validate compatibility or choose alternative materials/seal systems.

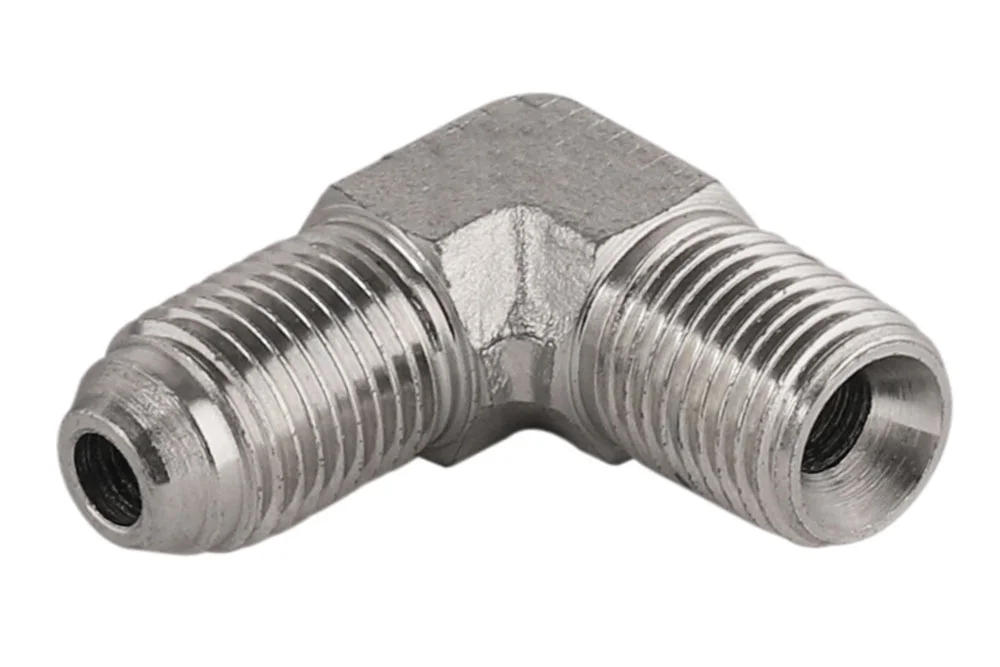

Adattatore JIS Toyota 90° – gomito da GZ BSP x GZ BSPT, acciaio al carbonio, tipo A405T

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)
Lunghezza standard [m]	10, 60

Adattatore – gomito 90° alta pressione JIS tipo A405T con filetto esterno BSP (tenuta cono invertito 60°) – TOYOTA e filetto esterno BSPT (tenuta sul filetto). Materiale: acciaio al carbonio zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A405T-04-04	Adattatore 90Â° GZ BSP 1/4" JIS / GZ BSPT 1/4"	-	345	In stock	Richiesta
TI-A405T-06-06	Adattatore 90Â° GZ BSP 3/8" JIS / GZ BSPT 3/8"	-	345	In stock	Richiesta
TI-A405T-08-08	Adattatore a 90Â° GZ BSP 1/2" JIS / GZ BSPT 1/2"	-	225	In stock	Richiesta
TI-A405T-12-12	Adattatore 90Â° GZ BSP 3/4" JIS / GZ BSPT 3/4"	-	200	In stock	Richiesta
TI-A405T-16-16	Adattatore 90Â° GZ BSP 1" JIS / GZ BSPT 1"	-	160	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore – gomito 90° alta pressione JIS tipo A405T con filetto esterno BSP (tenuta cono invertito 60°) – TOYOTA e filetto esterno BSPT (tenuta sul filetto). Materiale: acciaio al carbonio zincato.

Additional information

Materiale	CS – acciaio (ghisa)
Lunghezza standard [m]	10, 60

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
