Is Bolt for BANJO double, carbon steel, type DHS suitable for high-pressure hydraulic applications and what is its maximum working pressure?

Bolt for BANJO double, carbon steel, type DHS Format: Based on the given description . a DHS type BANJO bolt with metric thread, two holes, made of carbon steel and galvanized . there is insufficient information to confirm suitability for high-pressure hydraulic applications or to state a maximum working pressure. Key factors that determine suitability and allowable working pressure include: material grade and mechanical properties (specific carbon steel grade, tensile/yield strength), dimensional details (bolt diameter, wall thickness, hole sizes and spacing), manufacturing standards, heat treatment, surface treatment specifications, thread class, and applicable pressure ratings or certification/testing results (e.g., hydrostatic tests, compliance with relevant hydraulic or pressure-vessel standards). Galvanization protects against corrosion but does not increase pressure capacity. Without explicit manufacturer pressure ratings, engineering calculations or test data, assuming safe use in high-pressure hydraulic systems would be unsafe. Recommendation: obtain from the manufacturer or supplier the detailed material specification, mechanical properties, dimensional drawings, and a certified maximum working pressure or relevant test/certification documents before using Bolt for BANJO double, carbon steel, type DHS Format in high-pressure hydraulic applications.

Can Bolt for BANJO double, carbon steel, type DHS be used with corrosive fluids or in marine environments?

No. Bolt for BANJO double, carbon steel, type DHS (galvanized) is not suitable for prolonged use with corrosive fluids or in marine environments. Carbon steel, even when galvanized, offers only limited corrosion resistance; aggressive chemicals, salt water, and high-humidity marine atmospheres will accelerate coating breakdown and underlying steel corrosion, risking structural and sealing failure. For such conditions choose materials with proven corrosion resistance (e.g., stainless steel grades suitable for the specific fluid and chloride exposure, or special coatings and corrosion-resistant alloys) and verify compatibility with the fluid, temperature, and pressure.

Does Bolt for BANJO double, carbon steel, type DHS come with installation torque specifications?

Bolt for BANJO double, carbon steel, type DHS Format: Based on the provided description. âDHS type BANJO bolt with metric thread, with two holes. Material: carbon steel, galvanizedâ. there are no explicit installation torque specifications included. The listing specifies material, thread type and geometry (double/banjo with two holes) and plating, but does not state a recommended tightening torque. Recommended actions: - Consult the equipment manufacturer or the product technical datasheet for precise torque values specific to your application and bolt size (metric thread pitch and diameter). - If manufacturer data is unavailable, use standard torque tables for carbon steel bolts of the correct metric size and property class, adjusting for the presence of galvanization (galvanized coatings can affect friction; a common practice is to increase recommended torque by about 10â15% compared to clean, uncoated bolts or to use torque values specified for coated fasteners). - Consider application factors: bolt diameter, thread pitch, clamping materials, lubrication, and whether the banjo joint carries fluid pressure. these can change target torque. - If critical (pressure systems, safety-related), have a qualified engineer specify torque or perform a joint preload calculation, and tighten with a calibrated torque tool. Summary: No torque spec is given in the description; obtain manufacturer/datasheet guidance or use standard metric bolt torque tables adjusted for galvanization and application specifics.

Vite doppia per BANJO, acciaio al carbonio, tipo DHS

Raccordi e adattatori a bassa pressione, Tutti i prodotti/

Additional information

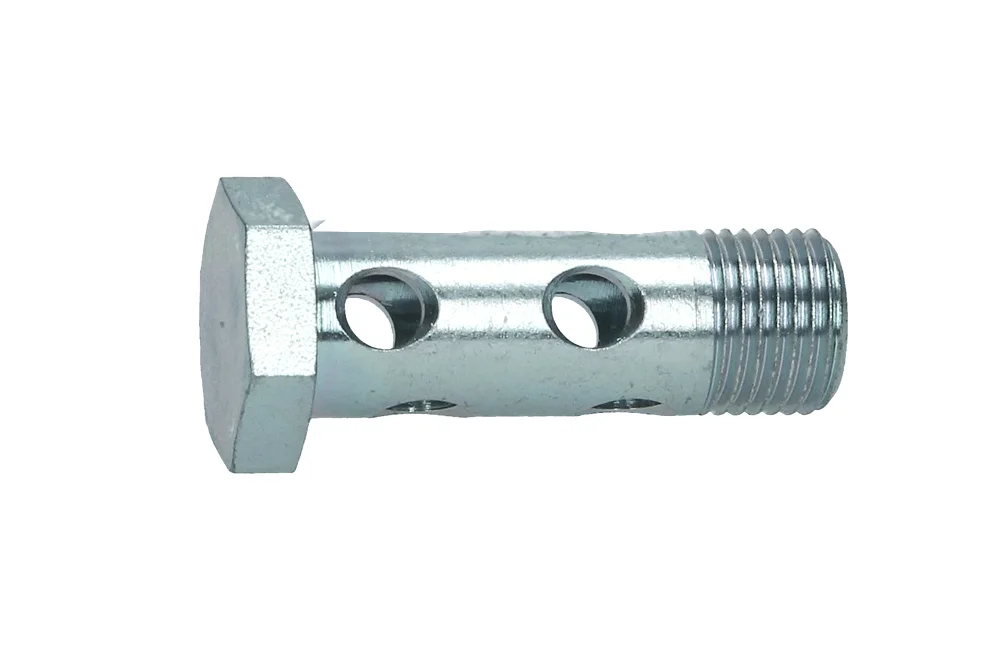

Vite BANJO tipo DHS con filetto metrico, con due fori. Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
EC-107108	Vite BANJO doppia DHS M8x1	-	-	In stock	Richiesta
EC-107110	Vite banjo doppia DHS M10x1	-	-	In stock	Richiesta
EC-107112	Vite banjo doppia DHS M12x1,5	-	-	In stock	Richiesta
EC-107114	Vite banjo doppia DHS M14x1,5	-	-	In stock	Richiesta
EC-107116	Vite per banjo doppio DHS M16x1,5	-	-	In stock	Richiesta
EC-107118	Vite per banjo doppio DHS M18x1,5	-	-	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Vite BANJO tipo DHS con filetto metrico, con due fori. Materiale: acciaio al carbonio, zincato.
