Is the Ball valve with aluminum butterfly with BSP thread, type 4194 compatible with aggressive chemicals given its PTFE seals and nickelâplated brass body?

Ball valve with aluminum butterfly with BSP thread, type 4194 may be compatible with some aggressive chemicals, but compatibility is not guaranteed for all. Key points: - Seals: PTFE ball seals offer excellent chemical resistance and are suitable for many aggressive acids, bases and solvents. Stem seals use FKM (good for many hydrocarbons, oils, some acids) and NBR (less resistant . poor with strong acids, ketones, and certain solvents). The presence of NBR on the stem can limit overall chemical compatibility in aggressive environments. - Body and ball: Nickelâplated brass and chromeâplated brass have moderate corrosion resistance but can be attacked by strong acids (e.g., nitric, hydrochloric), ammonia, some chlorides, and certain aggressive chemicals, especially at elevated temperatures or concentrations. - Temperature: Rated â20Â°C to +150Â°C; chemical aggressiveness generally increases with temperature, which can reduce seal and metal resistance. - Application guidance: For specific aggressive chemicals, you must check chemical compatibility charts for PTFE, FKM, NBR, brass and nickel plating at the intended concentration and temperature. Also consider media cleanliness, pressure and exposure time. - Safety/regulation: The valve meets PED 2014/68/EU, but compliance doesnât guarantee chemical resistance. Conclusion: Ball valve with aluminum butterfly with BSP thread, type 4194 can be suitable for many aggressive chemicals due to PTFE seals, but the nickelâplated brass body, chromeâplated ball and stem seals (FKM/NBR) may be attacked by certain aggressive media. Verify compatibility caseâbyâcase using chemical compatibility data or consult the manufacturer with exact media, concentration, temperature and pressure.

Can Ball valve with aluminum butterfly with BSP thread, type 4194 be used outdoors in frosty conditions down to -20Â°C without seal damage?

Ball valve with aluminum butterfly with BSP thread, type 4194 can be used outdoors down to -20Â°C without seal damage, provided conditions match the specified materials and limits. Operating temperature range is â20Â°C to +150Â°C, so PTFE ball seals and the stem seals (FKM + NBR) are rated at that lower limit. However, note: NBR (nitrile) and some FKM grades can harden or lose elasticity near â20Â°C, potentially affecting seal performance and ease of operation. Aluminum lever may become cold to operate and condensation/ice could affect mechanism. Ensure the specific FKM/NBR compound used by the manufacturer is certified for repeated exposure at â20Â°C and consider occasional maintenance, frost protection measures, or selecting cold-rated elastomers if frequent freezing/thawing is expected.

Can Ball valve with aluminum butterfly with BSP thread, type 4194 be used for steam service at elevated temperatures near 150Â°C?

Ball valve with aluminum butterfly with BSP thread, type 4194. summary for steam service near 150Â°C Not recommended for steam service at ~150Â°C without careful verification and likely modifications. Why: - Maximum listed operating temperature is +150Â°C. This is at the upper limit; continuous exposure to saturated steam at that temperature may stress materials and seals. - Body: nickel-plated brass and ball: chrome-plated brass. copper alloys can suffer dezincification and corrosion in wet steam and aggressive steam environments (especially with oxygen, chlorides or acidic compounds). - Lever: aluminum. aluminum components can be affected by high-temperature steam and may lose mechanical strength or corrode. - Seals: PTFE ball sealing is temperature-capable up to ~150Â°C but performance (creep, extrusion, sealing reliability) at continuous steam pressure and thermal cycling can degrade. Stem sealing: FKM + NBR. NBR is generally limited to ~100â120Â°C and FKM to ~200Â°C; however, NBR will not be suitable at 150Â°C, so stem sealing is questionable. - Threads: BSP female thread connections must be properly sealed for steam service and rated for the pressure at 150Â°C (pressure rating falls with temperature). Recommendations: - Do not assume suitability solely from the +150Â°C operating temperature specification. Confirm the valveâs pressure rating at 150Â°C per manufacturer data/PED compliance. - Replace NBR stem seal with high-temperature-compatible material (e.g., pure FKM, EPDM if appropriate, or graphite packing) and verify PTFE seat behavior with steam. - Consider corrosion risk to brass in steam; for reliability and safety, prefer valves designed for steam (stainless steel bodies, steam-rated seats/seals, suitable packing). - If still considering type 4194, consult the manufacturer for explicit steam-service approval, pressure-temperature ratings, and recommended seal materials for 150Â°C steam. Conclusion: Ball valve with aluminum butterfly with BSP thread, type 4194 is not generally suitable for steam at ~150Â°C without manufacturer confirmation and likely seal/material upgrades; use a valve specifically rated for steam for safe, reliable operation.

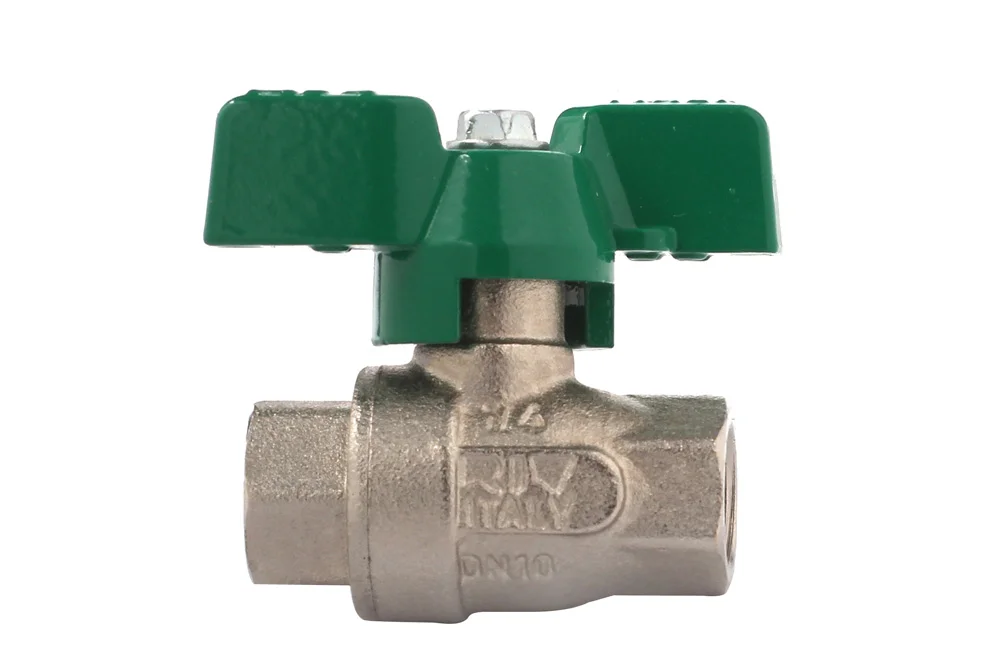

Valvola a sfera con farfalla in alluminio e filettatura BSP, tipo 4194

Tutti i prodotti, Valvole a sfera/

Additional information

Materiale	B – ottone (bronzo)

Valvola a sfera universale tipo 4194 destinata a impianti industriali. Può essere utilizzata per aria, gas, acqua, prodotti chimici, prodotti petrolchimici, ecc., tenendo conto della resistenza chimica del materiale e delle tenute della valvola. Soddisfa i requisiti della direttiva PED 2014/68/EU. La pressione di esercizio dipende dalla temperatura di lavoro. Corpo: ottone nichelato. Sfera: ottone cromato. Leva: alluminio. Tenuta sfera: PTFE. Tenuta stelo: FKM + NBR. Connessione: filettatura femmina BSP. Temperatura di esercizio: da -20°C a +150°C.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
RV-4194-06	Valvola a sfera tipo 4194 femmina BSP 1/4", ottone, leva a farfalla in alluminio	-	64	In stock	Richiesta
RV-4194-10	Valvola a sfera tipo 4194 femmina BSP 3/8", ottone, leva a farfalla in alluminio	-	64	In stock	Richiesta
RV-4194-13	Valvola a sfera tipo 4194 F BSP 1/2", ottone, leva a farfalla in alluminio	-	64	In stock	Richiesta
RV-4194-19	Valvola a sfera tipo 4194, filettatura femmina BSP 3/4", ottone, leva a farfalla in alluminio	-	40	In stock	Richiesta
RV-4194-25	Valvola a sfera tipo 4194 GW BSP 1", ottone, leva a farfalla in alluminio	-	40	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Valvola a sfera universale tipo 4194 destinata a impianti industriali. Può essere utilizzata per aria, gas, acqua, prodotti chimici, prodotti petrolchimici, ecc., tenendo conto della resistenza chimica del materiale e delle tenute della valvola. Soddisfa i requisiti della direttiva PED 2014/68/EU. La pressione di esercizio dipende dalla temperatura di lavoro. Corpo: ottone nichelato. Sfera: ottone cromato. Leva: alluminio. Tenuta sfera: PTFE. Tenuta stelo: FKM + NBR. Connessione: filettatura femmina BSP. Temperatura di esercizio: da -20°C a +150°C.

Additional information

Materiale	B – ottone (bronzo)

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
