Is the 3-way normally open switching valve, D3V, suitable for fluids at temperatures between -20Â°C and +90Â°C?

Yes. The 3-way normally open switching valve, D3V is specified for an operating temperature range from â20Â°C to +90Â°C, so it is suitable for fluids whose temperatures fall within that range. Keep in mind the following practical points when selecting it for your application: - Sealing material: NBR (nitrile rubber) performs well within this range for many hydraulic oils and common fluids, but NBR has limited compatibility with some aggressive chemicals, high-percentage glycol solutions at extreme temperatures, and certain esters. Verify chemical compatibility with your specific fluid. - Materials of construction: body is cast iron and stem is hardened steel; ensure these metals are compatible with your fluid to avoid corrosion or erosion issues. - Viscosity and flow: very low or very high fluid viscosities at the temperature extremes can affect switching response and sealing performance.confirm the valveâs flow/pressure specs meet your system requirements. - Application conditions: consider freeze risk near â20Â°C, thermal expansion, and any ambient/operating cycles that might shorten seal life. If your fluid and operating conditions are within these constraints, the 3-way normally open switching valve, D3V is suitable. If in doubt, provide fluid type, exact temperature profile, and pressure/viscosity data for a compatibility check.

Does the 3-way normally open switching valve, D3V, require special maintenance for its NBR seals at low or high operating temperatures?

The 3-way normally open switching valve, D3V, uses NBR seals and is specified for an operating temperature range of -20Â°C to +90Â°C. Within this range NBR performs well and does not require special maintenance beyond standard practices: regular inspection for wear, checking for leaks, keeping the hydraulic fluid clean and compatible with NBR, and replacing seals if hardened, swollen or damaged. At or near the lower limit (-20Â°C) NBR can become less flexible; operate the valve slowly to avoid seal damage and inspect seals more frequently. At or near the upper limit (+90Â°C) NBR may age faster-monitor for hardening or loss of elasticity and replace seals proactively. Outside the specified range, special seal materials or additional maintenance would be required.

Can the 3-way normally open switching valve, D3V, be operated safely in systems using aggressive hydraulic fluids?

Generally no. the 3-way normally open switching valve, D3V, is not suitable for use with aggressive hydraulic fluids without verification and likely modification. Why: The valveâs materials and seals determine chemical compatibility. The D3Vâs body is cast iron and stem is hardened steel; both can corrode, pit, or suffer stress-corrosion cracking when exposed to aggressive or chemically active fluids (strong acids, alkalis, chlorinated hydrocarbons, ketones, esters, glycol ethers, etc.). Most critical is the sealing material: the D3V uses NBR (nitrile rubber), which has limited chemical resistance. NBR performs well with mineral oils and many petroleum-based hydraulic fluids but degrades, swells, hardens, or loses sealing properties when exposed to many aggressive fluids (synthetic esters, phosphate esters, some water-glycol mixes, ketones, strong solvents and certain additives). Implications: Using the D3V with an incompatible fluid risks seal failure, internal leakage, contamination, loss of control, and accelerated corrosion of metal parts. all reducing safety and service life and potentially causing system failure or hazards. Recommended actions: - Identify the specific hydraulic fluid and check chemical compatibility charts for cast iron, hardened steel and NBR. - If the fluid is aggressive, consult the valve manufacturer about alternative materials (stainless steel bodies/stems, corrosion-resistant coatings) and alternative seals (FKM/Viton, EPDM, PTFE, HNBR, or specialty elastomers) rated for the fluid and temperature range (-20Â°C to +90Â°C). - Consider valves specifically designed for aggressive fluids or systems with appropriate material certificates and tests. - If in doubt, perform compatibility testing under expected temperature and pressure conditions and include a maintenance/replacement plan. Conclusion: Do not assume safe operation. verify compatibility or select a variant with suitable metals and seals before using the 3-way normally open switching valve, D3V, with aggressive hydraulic fluids.

Valvola deviatrice 3 vie normalmente aperta, D3V

Tutti i prodotti, Valvole distributrici/

Additional information

Materiale	CS – acciaio (ghisa)
Lunghezza standard [m]	50/ 100

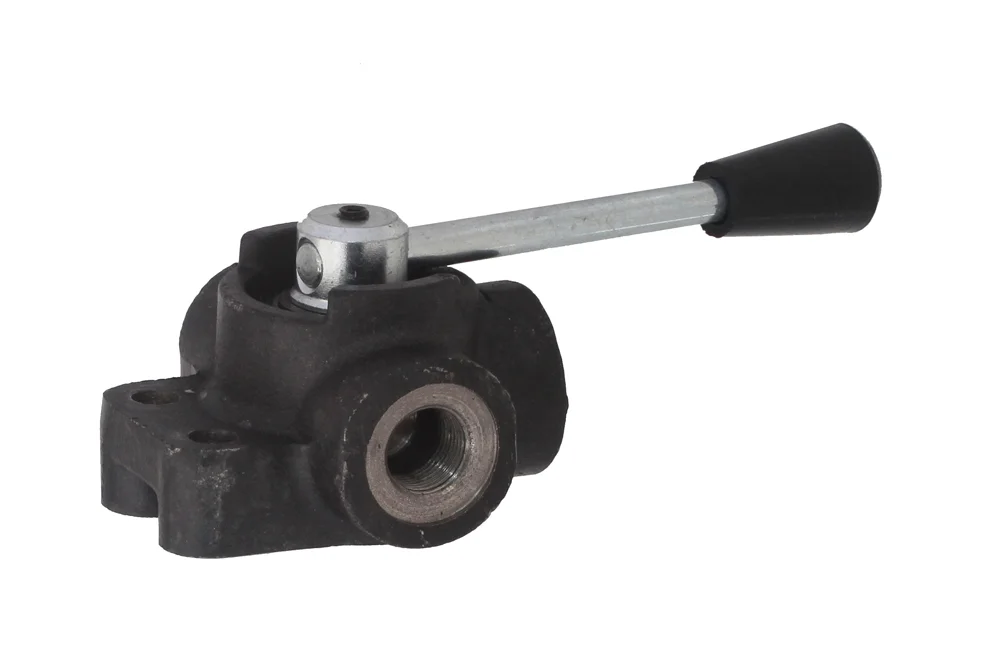

Valvola deviatrice a tre vie, normalmente aperta, utilizzata nei sistemi idraulici per controllare la direzione del flusso del fluido di lavoro. Il comando avviene tramite leva manuale. Materiale: corpo – ghisa, stelo – acciaio temprato. Tenuta: NBR. Temperatura di esercizio: da -20°C a +90°C.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
DC-D3V-04	Valvola deviatrice a 3 vie, filetto femmina 1/4", normalmente aperta	-	300	In stock	Richiesta
DC-D3V-06	Valvola deviatrice a 3 vie GW 3/8", normalmente aperta	-	250	In stock	Richiesta
DC-D3V-08	Valvola deviatrice a 3 vie FEM 1/2", normalmente aperta	-	250	In stock	Richiesta
DC-D3V-12	Valvola deviatrice a 3 vie, filettatura interna G 3/4", normalmente aperta	-	250	In stock	Richiesta
DC-D3V-16	Valvola deviatrice a 3 vie, filettatura femmina 1", normalmente aperta	-	250	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Valvola deviatrice a tre vie, normalmente aperta, utilizzata nei sistemi idraulici per controllare la direzione del flusso del fluido di lavoro. Il comando avviene tramite leva manuale. Materiale: corpo – ghisa, stelo – acciaio temprato. Tenuta: NBR. Temperatura di esercizio: da -20°C a +90°C.
