Can the Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S be used with both rubber and thermoplastic hoses and what sleeve sizes are compatible?

Yes. The Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S is designed for use with both rubber and thermoplastic hoses. It is a screwed hydraulic end (type S) with internal BSP thread, nut and a 60Â° DKR sealing cone, intended for assembly into hoses using a screwed sleeve. Compatible sleeve sizes depend on the hose bore and wall construction; typical screwed sleeves for this style cover the common metric hose sizes that match the manufacturerâs hose range for rubber and thermoplastic types. To select the correct sleeve, match the sleeve internal diameter and profile to the hose I.D. and reinforcement: - For rubber hoses: use sleeves sized to the hose nominal size (e.g., 6, 8, 10, 12, 16 mm etc.) specified by the hose maker. - For thermoplastic hoses: use sleeves rated for that specific thermoplastic hose series and nominal size, ensuring the sleeve contour fits the hose wall (some thermoplastic hoses require dedicated sleeves). Final sleeve selection must follow the hose supplierâs compatibility chart and the fitting manufacturerâs recommended sleeve part numbers to ensure proper crimping and sealing.

Is the Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S compatible with specific hose pressure ratings and temperature ranges?

Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S Format: The provided description (screwed hydraulic end, type S, internal BSP thread and nut, 60Â° sealing cone (DKR), 45Â° angle, for rubber and thermoplastic hoses with screwed sleeve, carbon steel, galvanized) does not specify allowable working pressures or temperature ranges. Compatibility with specific hose pressure ratings and temperatures therefore cannot be confirmed from this data alone. To determine compatibility you must compare the hose manufacturerâs rated working pressure and temperature range with the fittingâs certified working pressure, burst pressure, and material temperature limits (carbon steel galvanised typical limits ~ -20Â°C to +120Â°C but vary by treatment). Request the fittingâs technical datasheet or manufacturer certification (pressure ratings, burst factor, temperature range, and applicable standards) before use.

What tools and torque specs are recommended for installing the Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S?

Recommended tools and torque specifications for installing Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S: Tools required - Hose prep tools: hose cutter (fine-tooth reciprocating or sharp rotary cutter), deburring tool, and cleaning cloth. - Sleeve installation: appropriate screwed sleeve (matching hose and fitting), sleeve insertion mandrel or assembly fixture to support hose end during assembly. - Flaring/sealing check: cone gauge or visual inspection tools to verify seating of 60Â° sealing cone. - Wrenches: two adjustable or fixed spanners sized to the flats on the mating hexagon of the fitting and the hose nut; use a torque wrench for final tightening. - Assembly support: vice with soft jaws or clamp to hold hose without damaging cover. - Lubrication: light hydraulic oil or manufacturer-recommended assembly lubricant (apply sparingly to threads and hose barb only if specified). - Safety: gloves, eye protection, and clean work surface. Torque specification guidance - Use manufacturerâs exact torque table when available. If not provided, follow general BSP hydraulic fitting practice for carbon steel, DKR cone (60Â°) fittings: - For BSP sizes 1/8" to 1/4": 15â25 Nm (11â18 ftÂ·lb) - For BSP sizes 3/8" to 1/2": 25â50 Nm (18â37 ftÂ·lb) - For BSP sizes 3/4" to 1": 50â120 Nm (37â89 ftÂ·lb) - For BSP sizes above 1": 120â250+ Nm (89â184+ ftÂ·lb), increasing with size - Tightening procedure: engage threads by hand until snug, then use torque wrench to apply specified torque to the fitting hex while preventing rotation of the hose assembly with the counter-spanner. Do not exceed torque to avoid crushing the hose or deforming the 60Â° cone. - Re-check: after initial pressurization, inspect for leaks and re-torque per manufacturerâs recommendation if minor settling occurs. Notes and cautions - These are general recommended ranges; always prioritize the supplier/manufacturer torque chart if available for Bolted hydraulic end 45Â°, GW BSP, carbon steel, DKR type S Format. - Avoid using sealants on the 60Â° cone sealing surface unless explicitly permitted; thread sealant may be used on straight threads only if compatible and specified. - Incorrect torque or improper sleeve installation can cause leaks, hose blow-off, or premature failure.

Raccordo idraulico avvitato 45°, GW BSP, acciaio al carbonio, tipo DKR S

Additional information

Materiale	CS – acciaio (ghisa)

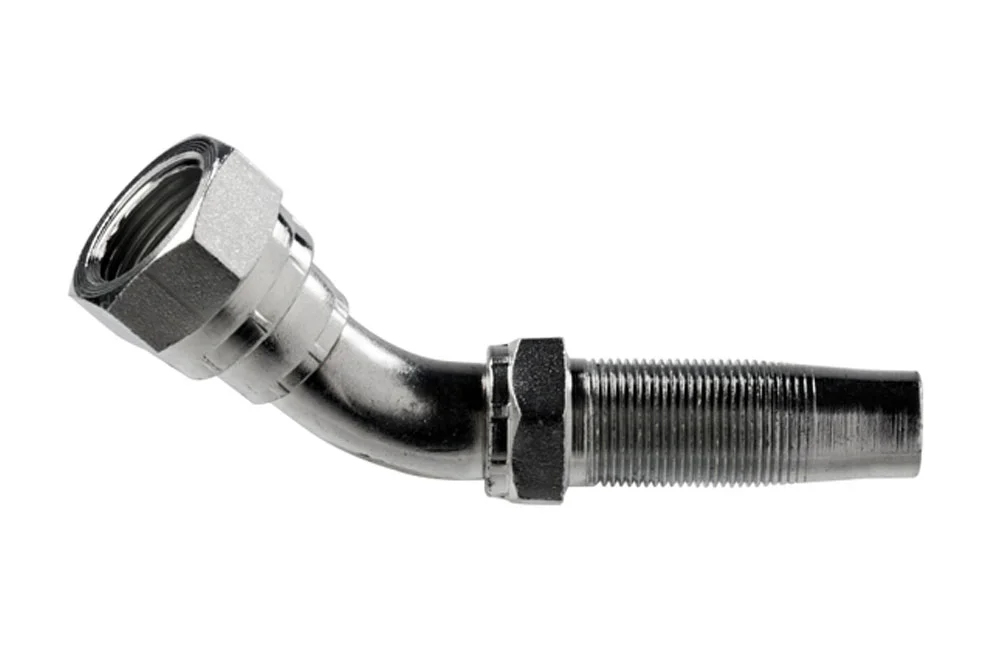

Raccordo idraulico avvitato, tipo S, con filetto interno BSP e dado, cono di tenuta 60° (DKR), angolato 45°. Progettato per l’avvitamento su tubi in gomma e termoplastici tramite boccola avvitata. Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-SBW310-02-03	Terminale filettato a 45Â° FEM 1/8" BSP, tubo 3/16"	5	-	In stock	Richiesta
TI-SBW310-04-03	EstremitÃ filettata a 45Â° femmina 1/4" BSP, tubo 3/16"	5	-	In stock	Richiesta
TI-SBW310-04-04	Terminale orientabile a 45Â° femmina 1/4" BSP, tubo 1/4"	6	-	In stock	Richiesta
TI-SBW310-06-05	Raccordo terminale curvo 45Â° femmina 3/8" BSP, tubo 5/16"	8	-	In stock	Richiesta
TI-SBW310-06-06	Terminale avvitato a 45Â° filettatura femmina 3/8" BSP, tubo 3/8"	10	-	In stock	Richiesta
TI-SBW310-08-08	Terminale orientabile a 45Â° filettatura femmina 1/2" BSP, tubo 1/2"	12	-	In stock	Richiesta
TI-SBW310-10-10	Terminale curvo a 45Â° femmina 5/8" BSP, tubo 5/8"	16	-	In stock	Richiesta
TI-SBW310-12-12	Terminale avvitato a 45Â° femmina 3/4" BSP, tubo 3/4"	20	-	In stock	Richiesta
TI-SBW310-16-16	Raccordo terminale orientabile a 45Â° FEM 1" BSP, tubo 1"	25	-	In stock	Richiesta
TI-SBW310-20-20	Terminale curvo a 45Â° femmina 1.1/4" BSP, tubo 1.1/4"	32	-	In stock	Richiesta
TI-SBW310-24-24	Raccordo terminale curvo a 45Â° filetto femmina 1.1/2" BSP, tubo 1.1/2"	38	-	In stock	Richiesta
