Is the JETON Ring set for 1/4" system compatible with other coolant fittings and nozzle types?

Yes . the JETON Ring set, 1/4" system is compatible with many common coolant fittings and nozzle types, but with some practical limits. The set uses standard 1/4" system dimensions and includes 15 acetal side nozzles and a plug (cap), so it will mate directly with other components specified for 1/4" coolant systems. Compatibility considerations: - Thread/connection: Ensure the mating part uses the same 1/4" system connection standard; mismatched thread types or proprietary fittings will not seal properly. - Material and media: Nozzles are acetal (POM) and rated to +65Â°C and up to 3 bar working pressure. Use only with coolants and temperatures/pressures within those limits to avoid deformation or failure. - Pressure/flow: At pressures above 3 bar the acetal nozzles may deform or fail; for high-pressure systems choose metal or higher-rated nozzles. - Nozzle form factors: Physically different nozzle geometries that fit the 1/4" interface will work, but spray pattern and flow characteristics may differ from the supplied side nozzles. - Sealing: Use appropriate seals (O-rings, tape, or design-specific seals) if the mating fitting requires them. In summary: Ring set, 1/4" system, JETON will work with other 1/4" coolant fittings and compatible nozzle types if you respect the connection standard, the 3 bar / +65Â°C material limits, and ensure correct sealing.

Does the JETON Ring set for 1/4" system include replacement caps and spare side nozzles?

Yes. The Ring set, 1/4" system, JETON includes 15 side nozzles and a plug (cap) made of acetal - providing both spare side nozzles and a replacement cap. The components are rated for up to 3 bar and up to +65Â°C.

Can the JETON Ring set for 1/4" system withstand chemical coolants or only water-based fluids?

The JETON Ring set, 1/4" system is made of acetal and rated for working pressures up to 3 bar and temperatures up to +65Â°C. Acetal (polyoxymethylene) has good chemical resistance to many hydrocarbons, oils and some solvents, and performs well with typical water-based coolants. However, its resistance varies by specific chemical: strong acids, strong bases, chlorinated solvents, ketones (like acetone), and certain aggressive brake or degreasing fluids can attack or swell acetal. Practical guidance: - For standard water-based coolants and emulsions used in metalworking or machining, the Ring set, 1/4" system is generally suitable. - For non-water-based chemical coolants, specialty solvents or highly alkaline/acidic fluids, compatibility is not guaranteed and may degrade the acetal components, reducing performance or causing failure. - If you plan to use aggressive chemicals, test a sample fitting with the exact fluid at expected temperature and pressure, or consult the coolant/fluid supplier for acetal compatibility. Conclusion: The JETON Ring set, 1/4" system is appropriate for water-based coolants; compatibility with chemical (non-water-based) coolants depends on the specific fluidâproceed with testing or supplier confirmation before use.

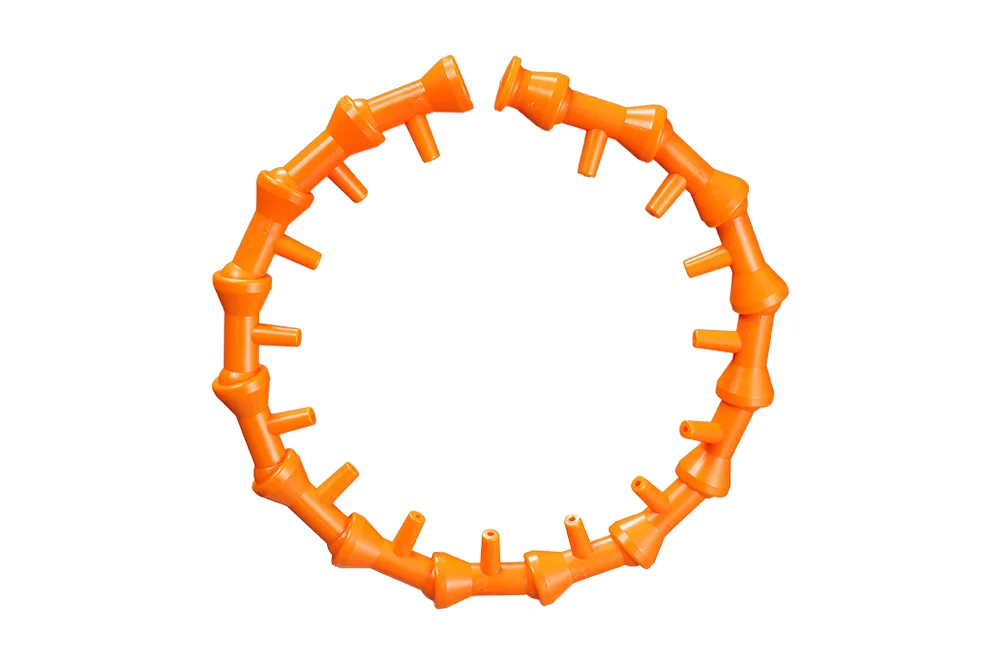

Set di anelli, sistema 1/4″, JETON

Tubi per aria e acqua, Tutti i prodotti/

Additional information

Set anello refrigerante – sistema 1/4″. Il set comprende 15 ugelli laterali e un tappo (cappuccio). Materiale: acetalica. Pressione di esercizio: fino a 3 bar. Temperatura di esercizio: fino a +65°C.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Prezzo	Quantità	Azioni	Catalogo
JT-62423	Kit di anelli (sistema 1/4")	-	3	In stock	0 zł		Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Set anello refrigerante – sistema 1/4″. Il set comprende 15 ugelli laterali e un tappo (cappuccio). Materiale: acetalica. Pressione di esercizio: fino a 3 bar. Temperatura di esercizio: fino a +65°C.
