Is the ORFS "T" tee fitting with UNF GZ in carbon steel compatible with standard ORFS hoses and fittings?

Yes . the ORFS "T" tee fitting with UNF GZ in carbon steel is compatible with standard ORFS hoses and fittings, with these conditions: - Sealing type: This fitting uses an ORFS (O-Ring Face Seal) flat face with an Oâring in the groove. It mates only with other ORFS female/male ports designed for flat-face Oâring sealing; it will not properly seal with nonâORFS (e.g., JIC 37Â°) or incorrectly configured adapters. - Thread and gender: The UNF external thread (GZ) must match the UNF thread form and size of the mating port. Ensure thread pitch, diameter and gender correspond to the counterpart. - Material and plating: Carbon steel, galvanized . mechanically compatible with standard carbon-steel ORFS components. For dissimilar-metal systems or corrosive environments, verify corrosion compatibility and consider corrosion protection or alternate materials. - Oâring specification: Use the correct Oâring material and size recommended for the ORFS standard and for the fluid/temperature service conditions. - Pressure and temperature ratings: Confirm the fittingâs pressure and temperature ratings match the system and the connected hoses/fittings; ORFS connections are commonly used in highâpressure hydraulic systems but ratings vary by size and manufacturer. In summary: yes, provided the mating parts are standard ORFS flat-face ports with matching UNF thread size/gender, appropriate Oâring, and compatible material/ratings.

Does the ORFS "T" tee fitting with UNF GZ in carbon steel require a specific O-ring size or material for proper sealing?

ORFS "T" tee fitting with UNF GZ in carbon steel Format requires an O-ring sized and specified to fit the flat-face groove for an ORFS (O-Ring Face Seal) connection. Use an O-ring of the correct AS568 dash size or metric equivalent that matches the groove dimensions for that specific UNF male thread/flat-face geometry; common materials are NBR (Buna-N) for general hydraulic oil service, FKM (Viton) for higher temperature or chemical resistance, and HNBR for improved heat and ozone resistance. Ensure O-ring cross-section and ID match the groove to prevent extrusion; follow manufacturer or SAE ORFS groove specifications for exact size and hardness (typically 70â90 Shore A) appropriate to pressure and fluid.

Can the ORFS "T" tee fitting with UNF GZ in carbon steel be used in high-pressure hydraulic systems?

Yes. with conditions. Explanation: The ORFS "T" tee fitting with UNF GZ in carbon steel (galvanized) is designed for hydraulic use and uses an O-ring face seal (ORFS) at the flat face, which provides a reliable, low-leakage seal suited for many high-pressure hydraulic systems. Carbon steel construction gives adequate strength for typical hydraulic pressures, and the UNF external (male) thread with O-ring groove is a standard, pressure-capable connection. Key considerations before use: - Pressure rating: Verify the specific pressure rating for that exact model/size from the manufacturer or datasheet. ORFS fittings commonly handle high pressures, but rating varies by size, wall thickness, and production standard (e.g., SAE/JIC/ISO equivalents). Do not assume universal pressure capability. - O-ring material: Ensure the O-ring compound (NBR, FKM/Viton, EPDM, etc.) is compatible with system fluid and temperature. O-ring selection affects seal integrity under high pressure and temperature. - Thread engagement and torque: Use proper installation torque and thread engagement per manufacturer to avoid thread damage or loss of preload on the O-ring. - Galvanized surface: Zinc plating provides corrosion resistance but can affect torque and may be damaged in abrasive environments. For very high pressures, consider fittings with appropriate surface treatment or corrosion-resistant alloys if needed. - Temperature and dynamic conditions: Check ratings for operating temperature range and cyclic/impact loads; high pressure combined with high temperature or vibration can reduce safe performance. - System cleanliness and assembly: Ensure O-ring and sealing surfaces are clean, O-ring properly seated, and no sharp threads or burrs that could cut the O-ring. Conclusion: The ORFS "T" tee fitting with UNF GZ in carbon steel can be used in high-pressure hydraulic systems when its specific pressure rating, O-ring material, installation torque, and environmental compatibility are confirmed to match the system requirements.

Raccordo a T ORFS con filettatura esterna UNF in acciaio al carbonio

Additional information

Materiale	CS – acciaio (ghisa)
Lunghezza standard [m]	10

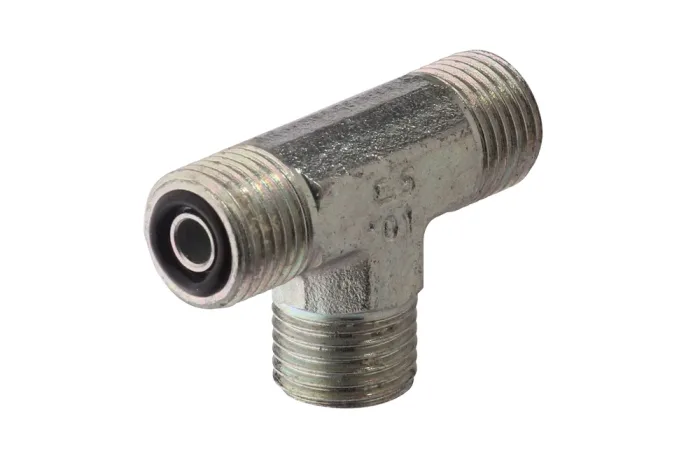

Raccordo a T ORFS con filettatura esterna UNF (tenuta tramite O-ring nella scanalatura della faccia piatta). Materiale: acciaio al carbonio zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
HO-T-09	Raccordo a T "T" maschio ORFS 9/16"-18	-	630	In stock	Richiesta
HO-T-11	Raccordo a T "T" GZ ORFS 11/16"-16	-	630	In stock	Richiesta
HO-T-13	Raccordo a T "T" maschio ORFS 13/16"-16	-	630	In stock	Richiesta
HO-T-16	Raccordo a T "T" maschio ORFS 1"-14	-	420	In stock	Richiesta
HO-T-19	Raccordo a T GZ ORFS 1.3/16"-12	-	420	In stock	Richiesta
HO-T-23	Raccordo a T "T" maschio ORFS 1.7/16"-12	-	420	In stock	Richiesta
HO-T-27	Raccordo a T "T" GZ ORFS 1.11/16"-12	-	280	In stock	Richiesta
HO-T-32	Raccordo a T"T" GZ ORFS 2"-12	-	280	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Raccordo a T ORFS con filettatura esterna UNF (tenuta tramite O-ring nella scanalatura della faccia piatta). Materiale: acciaio al carbonio zincato.

Additional information

Materiale	CS – acciaio (ghisa)
Lunghezza standard [m]	10

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
