Is the Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H suitable for use with aggressive chemical media and high-pressure applications?

Yes. The Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H is suitable for aggressive chemical media and highâpressure applications in many industrial settings. Rationale: - Material: Made from AISI 316 stainless steel, which offers excellent corrosion resistance to a wide range of chemicals (including acids, alkalis and many solvents), making it appropriate for aggressive media commonly found in chemical, petrochemical, pharmaceutical, energy and process industries. - Design & application: The T-shaped screw fitting with 2 x internal NPT threads and external NPT thread, type 3600H is explicitly intended for the chemical, petrochemical, pharmaceutical, energy, nuclear power and process engineering sectors, indicating suitability for demanding service conditions. - Pressure capability: The screwâin, threaded construction and robust AISI 316 material provide good mechanical strength for highâpressure systems; however, exact maximum pressure rating depends on thread size, wall thickness, operating temperature and joint sealing method. Limitations: For ultraâcorrosive media (e.g., strong chlorides at high temperature), extremely aggressive acids, or where higher alloy resistance is required, higherâgrade materials (e.g., duplex, superâaustenitic or nickel alloys) may be preferable. Always verify specific chemical compatibility and the required pressure/temperature ratings with manufacturer datasheets and applicable codes before use.

Can the Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H be used in nuclear power plant applications?

Yes - the Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H can be used in nuclear power plant applications, provided specific qualification and compliance requirements are met. It is manufactured from AISI 316 (a corrosion-resistant stainless steel) and is described for use in energy and nuclear power industries, indicating suitability for such environments. However, final acceptance depends on project-specific factors: material traceability and certification, nuclear-grade testing (e.g., radiation, thermal, seismic), pressure/temperature ratings, NDT and weld qualifications, compatibility with system fluids, and client/regulatory approvals. Confirm required standards (e.g., ASME, NQA-1, client spec) and obtain relevant documentation before installation.

What are the maintenance and inspection requirements for the Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H?

Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H. maintenance and inspection requirements: 1. Visual inspection frequency: - Initial inspection after installation and pressure test. - Routine visual checks every 3â6 months in standard service; increase to monthly in corrosive, high-temperature, high-pressure, or radiation environments. 2. Leak checks: - Perform leak tests after installation, after any maintenance, and periodically (at least annually) using appropriate methods (pressure decay, bubble test, or ultrasonic leak detector) compatible with system media and safety protocols. 3. Corrosion and surface condition: - Inspect for pitting, crevice corrosion, stress corrosion cracking, discoloration, or deposits during each visual check. - In aggressive chemical or chloride-containing services, perform more frequent inspections and consider periodic non-destructive testing (NDT) such as dye penetrant or eddy current. 4. Threads and sealing surfaces: - Check internal and external NPT threads for wear, galling, deformation, or damage before assembly and during scheduled inspections. - Ensure thread engagement is correct and that appropriate sealing method (PTFE tape, pipe dope compatible with process fluid, or metal-to-metal seal if specified) is used; replace damaged fittings. 5. Mechanical integrity and torque: - Verify that screw-in installation torque matches manufacturer or engineering specifications to ensure proper seating without overstressing AISI 316 material. - Re-torque after thermal cycling when applicable, following controlled, incremental procedure. 6. Nondestructive testing (as required): - For critical or nuclear applications, perform NDT per applicable codes/standards (e.g., dye penetrant, magnetic particleâlimited for austenitic stainlessâultrasonic, or visual inspection under qualified procedures) at intervals defined by engineering or regulatory requirements. 7. Cleaning and contamination control: - Clean external surfaces and threads to remove deposits, scale, or corrosive residues. Use cleaners compatible with AISI 316 and process fluids. - For pharmaceutical or food-related services, follow validated cleaning and sterilization procedures; inspect seals and surfaces for residue. 8. Replacement criteria: - Replace Screw-in "T" T-piece with 2 x GW NPT/GZ NPT stainless steel, 3600H if threads are damaged, if active corrosion or cracking is detected, if leaks persist after resealing, or if mechanical deformation is present. - Follow lifecycle or service-hour limits where provided by engineering guidelines. 9. Documentation and traceability: - Record inspections, torque values, leak test results, cleaning, and replacements in maintenance logs. For nuclear/critical plants, maintain full traceability to material certificates and inspection reports. 10. Safety and compatibility: - Always depressurize and isolate the line, follow lockout/tagout, and use PPE appropriate to the process fluid before inspecting or servicing. - Ensure sealing materials and pastes are chemically compatible with the process media and temperature range. Follow plant-specific procedures, manufacturer guidance, and relevant codes (ASME, API, nuclear regulations) for intervals and methods tailored to the service conditions.

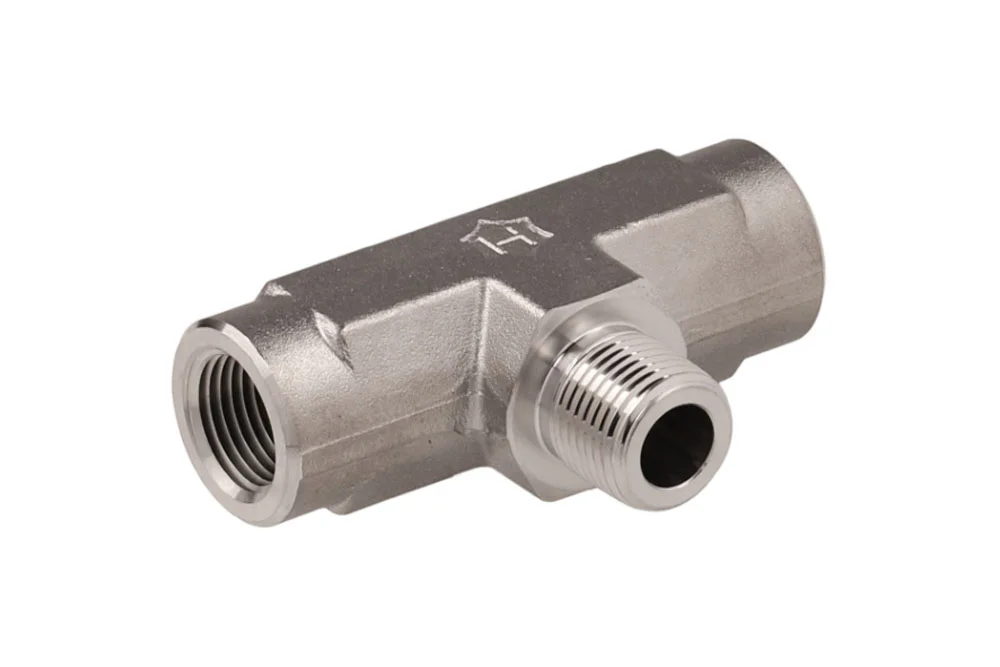

Raccordo a “T” avvitabile con 2 x GW NPT/GZ NPT acciaio inox, 3600H

Elementi filettati di precisione, Tutti i prodotti/

Additional information

Materiale	SS – acciaio inox

Raccordo a “T” filettato con 2 x filetti interni NPT e filetto esterno NPT, tipo 3600H, destinato principalmente ai settori chimico, petrolchimico, farmaceutico, energetico, nucleare e dell’ingegneria di processo. Materiale: acciaio AISI 316.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
HM-P3600H-02-SS	Raccordo a T filettato, 2 x F 1/8" NPT / 1 x M 1/8" NPT, acciaio inox	-	448	In stock	Richiesta
HM-P3600H-04-SS	Raccordo a T filettato, 2 x FEM 1/4" NPT / 1 x MASCHIO 1/4" NPT, acciaio inox	-	455	In stock	Richiesta
HM-P3600H-06-SS	Raccordo a T filettato, 2 x femmina 3/8" NPT / 1 x maschio 3/8" NPT, acciaio inox	-	366	In stock	Richiesta
HM-P3600H-08-SS	T a T filettato, 2 x filettatura femmina 1/2" NPT / 1 x filettatura maschio 1/2" NPT, acciaio inox	-	338	In stock	Richiesta
HM-P3600H-12-SS	Raccordo a T filettato, 2 x femmina 3/4" NPT / 1 x maschio 3/4" NPT, acciaio inox	-	317	In stock	Richiesta
HM-P3600H-16-SS	Raccordo a T filettato, 2 x FEM 1" NPT / 1 x M 1" NPT, acciaio inox	-	303	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Raccordo a “T” filettato con 2 x filetti interni NPT e filetto esterno NPT, tipo 3600H, destinato principalmente ai settori chimico, petrolchimico, farmaceutico, energetico, nucleare e dell’ingegneria di processo. Materiale: acciaio AISI 316.
