Is the Air gun with standard nozzle, aluminum (casting) suitable for use at 10 bar maximum pressure and what operating pressures are recommended?

Yes. Air gun with standard nozzle, aluminum (casting) is suitable for use at a maximum pressure of 10 bar (this is the product's rated maximum pressure). Recommended operating pressures are 2â8 bar for normal use. Operating temperature range: â10Â°C to +50Â°C. Nozzle: standard interchangeable 1.5 mm hole; other nozzles from EWO accessories may be fitted. Connection options: EUROSTANDARD 7.2 plug or hose couplings 6 mm, 9 mm, 13 mm.

Can the Air gun with standard nozzle, aluminum (casting) accept different nozzle types and various hose connections?

Air gun with standard nozzle, aluminum (casting): Yes. The gun comes with an interchangeable standard nozzle (1.5 mm Ã) with external thread M12x1.25, so other nozzle types from the EWO gun accessories range can be fitted. For hose connections it is offered either with a EUROSTANDARD 7.2 plug or with hose couplings of 6 mm, 9 mm, or 13 mm, depending on the chosen connection.

How should I maintain the Air gun with standard nozzle, aluminum (casting) to ensure reliable operation and longevity?

To ensure reliable operation and long service life of the Air gun with standard nozzle, aluminum (casting), follow these maintenance guidelines: 1. Regular inspection - Before each use check the gun body, lever, nozzle, and connection for visible damage, cracks, corrosion or deformation. - Verify the nozzle (1.5 mm hole) is not bent or clogged. 2. Cleaning - Blow out the nozzle and air passages with clean, dry compressed air at low pressure to remove dust, chips and liquids. - If clogged, remove the interchangeable nozzle and clean gently with a soft wire or suitable nozzle cleaner; avoid enlarging or deforming the hole. - Wipe external surfaces with a lint-free cloth; if necessary use a mild detergent and dry thoroughly. 3. Filtered, dry air supply - Use properly filtered and dried compressed air to prevent moisture, oil and particles from entering the gun. Install and maintain inline filters, separators and a regulator. - Drain condensate from air lines and filters regularly. 4. Lubrication - The aluminium casting construction requires minimal internal lubrication. If recommended by your workplace practice, use only a light pneumatic tool oil sparingly in upstream lubricatorsânever excessive oil that could attract debris or degrade seals. 5. Nozzle handling and replacement - Use only compatible interchangeable nozzles (see EWO gun accessories). Replace nozzle if worn, enlarged or damaged to maintain performance. - Tighten nozzle to the specified thread (external connection M12x1.25) but avoid overtightening which can damage threads. 6. Pressure and temperature limits - Operate within specified limits: operating pressure 2â8 bar (maximum 10 bar) and temperature -10Â°C to +50Â°C. Avoid pressure spikes and exposure beyond temperature range. 7. Connections and fittings - Inspect and secure the chosen connection (EUROSTANDARD 7.2 plug or hose coupling 6/9/13 mm). Replace worn or leaking couplings and hoses promptly. 8. Storage - Store the gun in a clean, dry place protected from impact and corrosive environments. Cap or cover the nozzle to prevent contamination when not in use. 9. Safety checks - Periodically test the lever control for smooth, predictable flow regulation. Repair or replace any malfunctioning control parts. 10. Service and repairs - If internal damage or persistent leaks occur, send the gun to an authorized service center or qualified technician. Use original spare parts. Following these steps will help maintain performance, safety and longevity of your Air gun with standard nozzle, aluminum (casting).

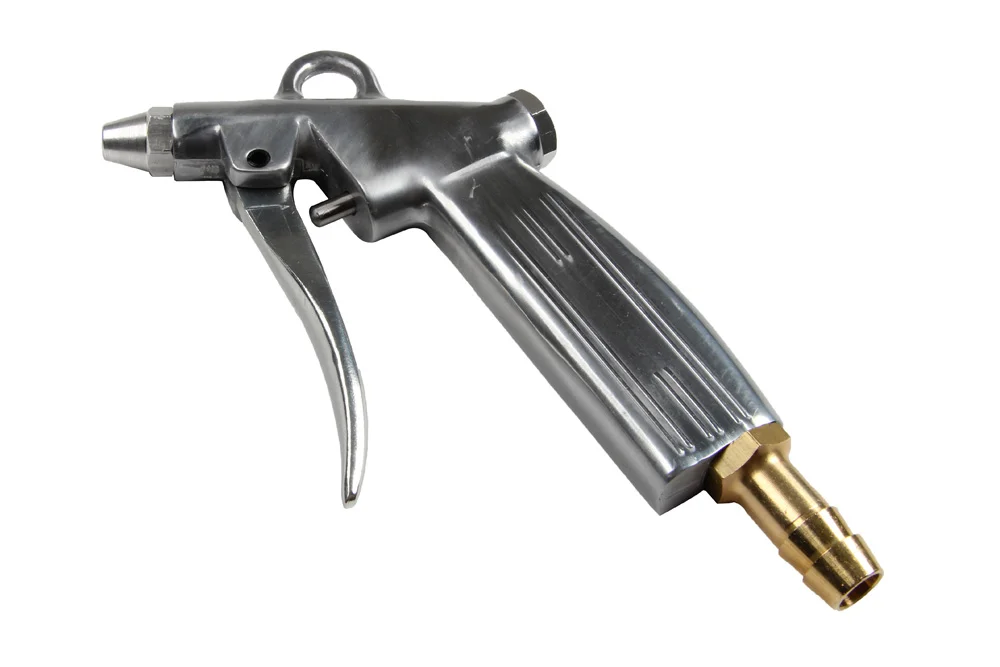

Pistola ad aria con ugello standard, alluminio (fusione)

Pistole ad aria, Tutti i prodotti/

Additional information

Pistola ad aria compressa in alluminio progettata per la rimozione di tutti i tipi di contaminanti dalle superfici: liquidi, trucioli fini, sfridi, ecc. Regolazione del flusso tramite il grado di pressione sulla leva. Realizzata tramite fusione di alluminio. La pistola è dotata di ugello standard con foro da 1,5 mm, intercambiabile, con filetto di collegamento esterno M12x1.25. È possibile installare altri ugelli al posto di quello standard – vedi accessori per pistole EWO. A seconda del collegamento, la pistola è disponibile con innesto EUROSTANDARD 7.2 o raccordo per tubo con diametri di 6 mm, 9 mm e 13 mm. Materiale: alluminio (fusione). Diametro foro ugello: 1,5 mm. Pressione massima: 10 bar. Pressione di esercizio: 2 ÷ 8 bar. Temperatura di esercizio: da -10°C a +50°C.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
EW-26911L	Pistola ad aria, ugello standard, diam. foro 1,5 mm, terminale 6 mm (getto)	-	10	In stock	Richiesta
EW-26917L	Pistola ad aria, ugello standard, diametro foro 1,5 mm, punta 9 mm (fusione)	-	10	In stock	Richiesta
EW-26918L	Pistola ad aria, ugello standard, diam. foro 1,5 mm, estremitÃ 13 mm (fusione)	-	10	In stock	Richiesta
EW-26941L	Pistola ad aria, ugello standard, diam. foro 1,5 mm, innesto DN 7,2 (fusione)	-	10	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Pistola ad aria compressa in alluminio progettata per la rimozione di tutti i tipi di contaminanti dalle superfici: liquidi, trucioli fini, sfridi, ecc. Regolazione del flusso tramite il grado di pressione sulla leva. Realizzata tramite fusione di alluminio. La pistola è dotata di ugello standard con foro da 1,5 mm, intercambiabile, con filetto di collegamento esterno M12x1.25. È possibile installare altri ugelli al posto di quello standard – vedi accessori per pistole EWO. A seconda del collegamento, la pistola è disponibile con innesto EUROSTANDARD 7.2 o raccordo per tubo con diametri di 6 mm, 9 mm e 13 mm. Materiale: alluminio (fusione). Diametro foro ugello: 1,5 mm. Pressione massima: 10 bar. Pressione di esercizio: 2 ÷ 8 bar. Temperatura di esercizio: da -10°C a +50°C.
