Can RJT nut stainless steel type RN (AISI 304) safely handle a maximum allowable working pressure of 10 bar per BS 4825-5 at typical gasket-dependent operating temperatures?

Yes. The RJT nut, stainless steel, type RN (AISI 304) is specified per BS 4825-5 with a maximum allowable working pressure for the connection of 10 bar. Provided the gasket selected is rated for the operating temperature encountered in service, the RN nut itself (AISI 304) can safely handle that 10 bar rating according to the standard. Ensure gasket material compatibility with both the process temperature and pressure.because the standard pressure rating applies to the connection assembly but the usable pressure at elevated temperatures is governed by the gasketâs temperature/pressure limits. If gasket limits are exceeded, the assembly cannot be relied on at 10 bar.

Can RJT nut stainless steel type RN maintain seal integrity at 10 bar per BS 4825-5 across typical gasket temperature ranges?

Yes. The RJT nut stainless steel type RN is manufactured to RJT (inch) threads and, per BS 4825-5, the connectionâs maximum allowable working pressure is 10 bar. Provided a gasket material rated for the intended operating temperature is selected (since sealing performance depends on gasket temperature limits), the stainless steel AISI 304 RJT nut type RN can maintain seal integrity at 10 bar across typical gasket temperature ranges. Ensure gasket compatibility and installation to manufacturer/specification guidelines for reliable sealing.

Is the RJT nut stainless steel type RN (AISI 304) compliant with BS 4825-5 for 10 bar working pressure?

Yes. The RJT nut, stainless steel, type RN (AISI 304) is compliant with BS 4825-5 for a maximum allowable working pressure of 10 bar for the connection itself. The product description specifies: Nut according to BS 4825-5 for RJT connections; Thread type: inch RJT; Maximum allowable working pressure (for the connection itself according to BS 4825-5): 10 bar; Material: AISI 304 steel. Operating temperature depends on the gasket material, but the stainless steel type RN meets the standardâs 10 bar working pressure requirement.

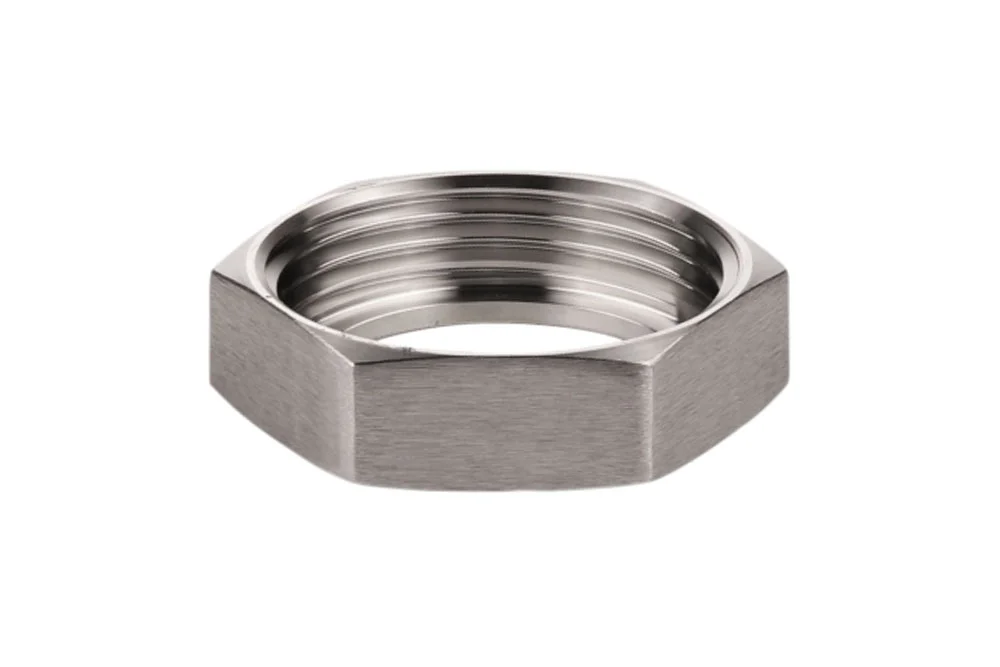

Dado RJT, acciaio inox, tipo RN

Raccordi igienici in acciaio inox, Tutti i prodotti/

Additional information

Dado secondo BS 4825-5 per raccordi RJT. Tipo di filetto: RJT pollici. Pressione massima di esercizio consentita (per il solo collegamento secondo BS 4825-5): 10 bar. Temperatura di esercizio: in base al tipo di materiale della guarnizione. Materiale: acciaio AISI 304.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
NH-RN-025	Dado RJT femmina 1", AISI 304	-	-	In stock	Richiesta
NH-RN-040	Ghiera RJT femmina 1.1/2", AISI 304	-	-	In stock	Richiesta
NH-RN-050	Ghiera RJT femmina 2", AISI 304	-	-	In stock	Richiesta
NH-RN-065	Dado RJT femmina 2.1/2", AISI 304	-	-	In stock	Richiesta
NH-RN-075	Dado RJT femmina 3", AISI 304	-	-	In stock	Richiesta
NH-RN-100	Dado RJT filettatura femmina 4", AISI 304	-	-	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Dado secondo BS 4825-5 per raccordi RJT. Tipo di filetto: RJT pollici. Pressione massima di esercizio consentita (per il solo collegamento secondo BS 4825-5): 10 bar. Temperatura di esercizio: in base al tipo di materiale della guarnizione. Materiale: acciaio AISI 304.
