Is the Nut for double taper ring, galvanized steel compatible with standard tube fittings and seamless steel or brass pipes for lubrication conduits?

Yes. The Nut for double taper ring, galvanized steel is designed for installation of lubrication conduits using standard tube fittings and seamless pipes made of steel or brass, so it is compatible with standard tube fittings and with seamless steel or brass pipes used for lubrication conduits. The carbon steel, galvanized construction ensures mechanical strength and corrosion resistance suitable for such applications.

Can Nut for double taper ring, galvanized steel withstand corrosion in lubrication conduit environments?

Nut for double taper ring, galvanized steel offers basic corrosion resistance due to the zinc coating on carbon steel. In lubrication conduit environments (with standard tube fittings and seamless steel or brass pipes) it will generally perform adequately where exposure is limited to oil, grease, and occasional condensation. However, galvanized coating can be compromised by continuous exposure to aggressive lubricants containing additives, high humidity, salt, acids, or alkaline cleaning agents, leading to localized corrosion and loss of coating adhesion. For long-term, high-pressure, chemically aggressive, saline, or high-temperature lubrication systems, stainless steel or specially coated components are recommended. Inspect galvanization quality, ensure compatible fittings and fluids, and consider protective measures (sealants, proper drainage, periodic inspection) to extend service life.

Does Nut for double taper ring, galvanized steel require specific torque values during installation?

Nut for double taper ring, galvanized steel does not have universal, manufacturer-independent specific torque values stated in the provided description. However, correct installation does require appropriate tightening control to ensure a reliable seal and avoid damage: - Torque depends on mating components (thread size, material of fitting and pipe), the condition of threads, lubrication, and whether a thread sealant is used. Galvanized carbon steel nuts typically tolerate moderate torque; overtightening can strip threads, deform the double-cone seating surface, or crack thin-walled tubes (especially brass or seamless steel tubing). - General practice: follow the torque recommendations of the conduit fitting or tubing manufacturer. If no data are available, tighten progressively by hand-tight plus a measured fraction of a turn with a wrench (commonly 1/4 to 1/2 turn) while checking for proper seating and no visible damage. For metric/imperial thread sizes, reference standard torque tables for steel threaded fasteners of comparable diameter and grade as a starting point, then validate by pressure testing the assembly. - For critical lubrication systems: use a calibrated torque wrench, perform leak and mechanical tests, and, if possible, consult the fitting/tubing supplier or product datasheet for specified torque. If assembled in the field with mixed materials (brass tube + galvanized nut), err on the side of lower torque and rely on incremental tightening plus functional testing. In summary: Nut for double taper ring, galvanized steel requires controlled tightening but the exact torque must be taken from the fitting/tube manufacturer or determined from standard torque tables and validated by testing; there is no single specific value in the given description.

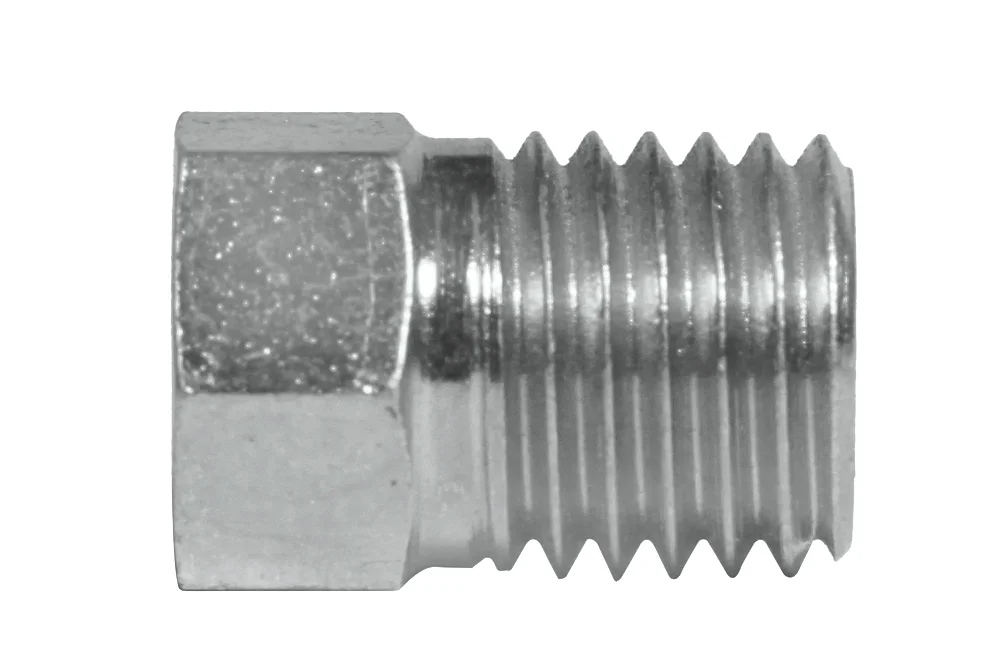

Dado per anello doppio conico, acciaio zincato.

Additional information

Dado per anello doppio conico destinato all’installazione di condotti per sistemi di lubrificazione utilizzando raccordi standard e tubi senza saldatura in acciaio o ottone. Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
EC-124800	Dado GZ M8x1 per anello biconico, tubo 4 mm	-	-	In stock	Richiesta
EC-124805	Dado GZ M10x1 per anello biconico, tubo 5 mm	-	-	In stock	Richiesta
EC-124810	Dado GZ M10x1 per anello biconico, tubo 6 mm	-	-	In stock	Richiesta
EC-124815	Dado GZ M12x1,5 per anello biconico, tubo 8 mm	-	-	In stock	Richiesta
EC-124820	Dado GZ M14x1,5 per anello biconico, tubo 8 mm	-	-	In stock	Richiesta
EC-124825	Dado GZ M16x1,5 per anello biconico, tubo 10 mm	-	-	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Dado per anello doppio conico destinato all’installazione di condotti per sistemi di lubrificazione utilizzando raccordi standard e tubi senza saldatura in acciaio o ottone. Materiale: acciaio al carbonio, zincato.
