Can Nut DIN 8537/20033 with Rd thread, galvanized cast iron withstand 16 bar working pressure when fitted to a tapered tail for a hose?

Short answer: No . Nut DIN 8537/20033 with Rd thread, galvanized cast iron fitted to a tapered tail for a hose should not be assumed to safely withstand 16 bar working pressure. Why: DIN 8537/20033 defines geometrical form and thread (Rd) for hose tail fittings, but does not by itself certify pressure capability. Galvanized cast iron has limited tensile and impact strength and is more brittle than ductile steels; its allowable working pressure in thin-walled, threaded hose-tail assemblies is typically lower and strongly dependent on part wall thickness, thread engagement, casting quality, galvanizing effects, and the mating tapered tail design and material. A threaded, tapered hose tail assembly creates stress concentrations at the thread roots and the tail junction; at 16 bar (â1.6 MPa) dynamic loads, vibration, temperature cycles or corrosion can provoke leak or fracture if the component and joint were not specifically designed and tested for that pressure. Recommendation: Verify manufacturerâs pressure rating and material specification for the specific Nut DIN 8537/20033 with Rd thread, galvanized cast iron. If no certified rating â¥16 bar exists, use a component made from a ductile, pressure-rated material (e.g., forged steel or bronze) or a nut specifically rated and tested for 16 bar service. If retention of this part is necessary, perform engineering verification: material certificates, wall thickness check, finite-element analysis or hydrostatic testing of the assembled hose-tail at â¥1.5Ã working pressure per relevant codes.

Is Nut DIN 8537/20033 with Rd thread, galvanized cast iron rated safe for 16 bar when used on a hose tapered tail?

Nut DIN 8537/20033 with Rd thread, galvanized cast iron Format: based on the description alone, you cannot assume it is safe for 16 bar on a hose tapered tail. Key points: DIN 8537/20033 Rd thread indicates design for a tapered male tail, but safety at 16 bar depends on fit accuracy, thread engagement, gasket/seal type, hose and tail material, clamping method, and corrosion/defect condition. Galvanized cast iron has limited ductility and can be brittle under shock or misalignment; its rated working pressure must be verified by manufacturer certification or applicable standards. If manufacturer documentation or testing explicitly rates this specific Nut DIN 8537/20033 with Rd thread, galvanized cast iron Format for 16 bar with the intended hose/tail assembly, then it is acceptable; absent that, do not assume safe-use a fitting and material with certified pressure rating for 16 bar.

Does Nut DIN 8537/20033 with Rd thread, galvanized cast iron maintain leak-free connection at 16 bar on a hose tapered tail?

No. Nut DIN 8537/20033 with Rd thread, galvanized cast iron used alone on a hose tapered tail will not reliably guarantee a leakâfree connection at 16 bar. Why: DIN 8537/20033 nuts with Rd thread are designed to secure a tapered mating component; the seal depends on correct mating geometry (tapered male fitting seating into a matching tapered socket), proper surface finish, and sufficient metalâtoâmetal contact. A hose tail (tapered barb) is typically not a precision tapered male sealing surface. it is intended for clamping a hose onto the tail with a hose clamp or crimp ferrule, not to form a metal pressure seal with a threaded nut. Galvanized cast iron provides structural strength but has limited ductility and surface conformity compared with softer sealing materials; under 16 bar (â232 psi) vibration, misalignment, or microâimperfections, it can leak or crack the hose, and the Rd thread joint will not develop a reliable fluidâtight metal seal on a hose tail. If you need a leakâfree 16 bar connection using Nut DIN 8537/20033 with Rd thread, galvanized cast iron, use a proper matching tapered male fitting per the standard (correct taper angle and finish) or combine the hose tail with an appropriate crimp/ferule assembly or a dedicated sealing adapter (e.g., an insert with a precision taper or Oâring port) rated for 16 bar. Also verify compatibility of galvanization with the fluid and perform pressure testing.

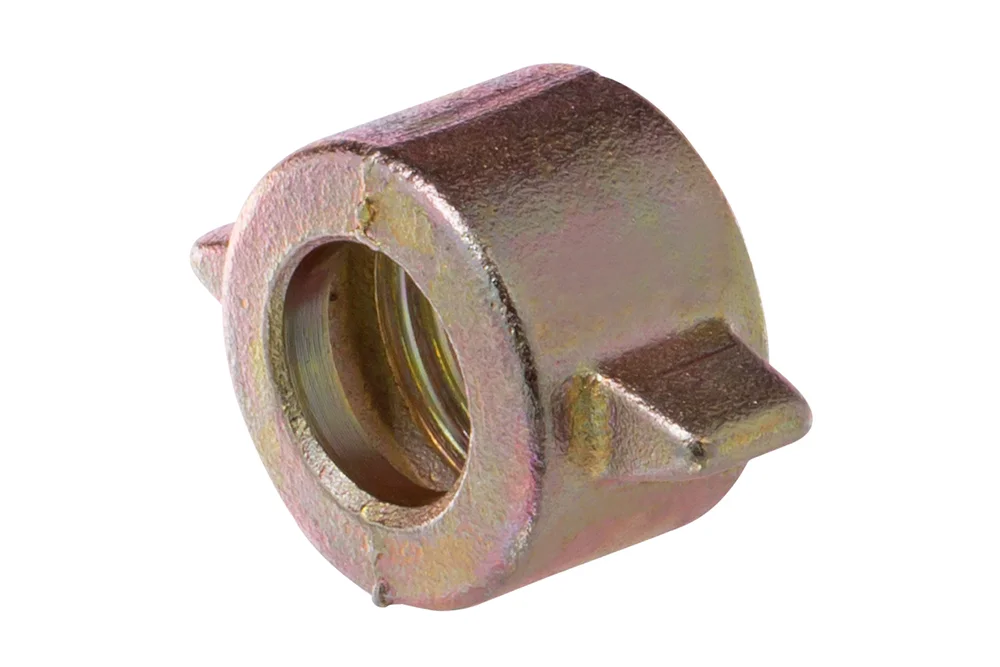

Dado DIN 8537/20033 con filetto Rd, ghisa zincata

Raccordi e adattatori a bassa pressione, Tutti i prodotti/

Additional information

Dado DIN 8537/20033 con filetto Rd destinato a terminale conico con “codolo” per tubo. Materiale: ghisa zincata. Pressione di esercizio: 16 bar.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Prezzo	Quantità	Azioni	Catalogo
MU-2003	Dado DIN 8537/20033 Rd32x1/8", ghisa malleabile, zincata	-	-	In stock	0 zł		Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Dado DIN 8537/20033 con filetto Rd destinato a terminale conico con “codolo” per tubo. Materiale: ghisa zincata. Pressione di esercizio: 16 bar.
