Is the Carbon steel pressure sleeve, type FM compatible with all metric pipe sizes when installed in the nut for proper compression to the fitting?

Short answer: No . the Carbon steel pressure sleeve, type FM is not automatically compatible with all metric pipe sizes just by being placed in the nut. Why: The description states the Carbon steel pressure sleeve, type FM, placed in the nut, allows for proper compression of the metric pipe to the fitting (coupling). That indicates the sleeveâs intended function and material (carbon steel, galvanized) but does not assert universal size compatibility. Proper compression requires the sleeveâs inner diameter, wall thickness, and profile to match the specific outside diameter and tolerances of the metric pipe and the mating fitting. Using a sleeve sized for a different pipe OD can cause poor sealing, leaks, or damage. Conclusion: Compatibility depends on selecting the Carbon steel pressure sleeve, type FM sized for the specific metric pipe OD and the corresponding coupling/nut. Verify sleeve dimensions and manufacturer compatibility charts for the exact metric sizes before installation.

Can Carbon steel pressure sleeve, type FM withstand corrosion in galvanised form for long-term metric pipe connections?

Carbon steel pressure sleeve, type FM in galvanized form offers some corrosion resistance compared with bare carbon steel, so it can be suitable for metric pipe connections in many environments. However, long-term performance depends on exposure conditions (moisture, chemicals, salt spray), coating quality and thickness, and mechanical wear during assembly. Galvanizing protects by sacrificial zinc but can degrade over time-especially in acidic, marine, or industrial atmospheres-leading to undercutting corrosion at damaged areas. For long-term, critical, or aggressive environments, stainless steel or additional protective measures (higher-grade coatings, sealants, or cathodic protection) are recommended. For typical indoor or non-corrosive applications, galvanized Carbon steel pressure sleeve, type FM can be acceptable if inspected and maintained.

How does the Carbon steel pressure sleeve, type FM ensure a secure seal when used in metric pipe couplings?

The Carbon steel pressure sleeve, type FM ensures a secure seal in metric pipe couplings by acting as a precisely shaped compression element positioned inside the nut. When the nut is tightened onto the fitting (coupling), the sleeve transmits and concentrates the compressive force evenly around the outer diameter of the metric pipe. Because it is made of carbon steel and galvanized, the sleeve provides necessary strength and resistance to deformation, maintaining consistent radial pressure as the pipe is compressed against the fittingâs seating surface. Key sealing mechanisms: - Controlled compression: The sleeveâs geometry is matched to metric pipe dimensions so tightening produces uniform radial compression, deforming the pipe slightly to create intimate contact with the fitting and eliminate gaps. - Mechanical grip: As the sleeve compresses the pipe, friction increases between pipe, sleeve and fitting, preventing axial or rotational movement that could break the seal. - Metal-to-metal contact: The compression results in metal-to-metal contact at the pipeâfitting interface, forming a dependable pressure-tight joint suitable for many hydraulic and pneumatic applications. - Corrosion protection and durability: Galvanization enhances the sleeveâs surface durability, reducing risk of corrosion-related loosening or failure over time and helping preserve the integrity of the seal. In short, the Carbon steel pressure sleeve, type FM, placed in the nut, enables proper, repeatable compression of the metric pipe to the fitting, producing uniform radial force, strong mechanical grip and durable metal-to-metal sealing for a secure coupling.

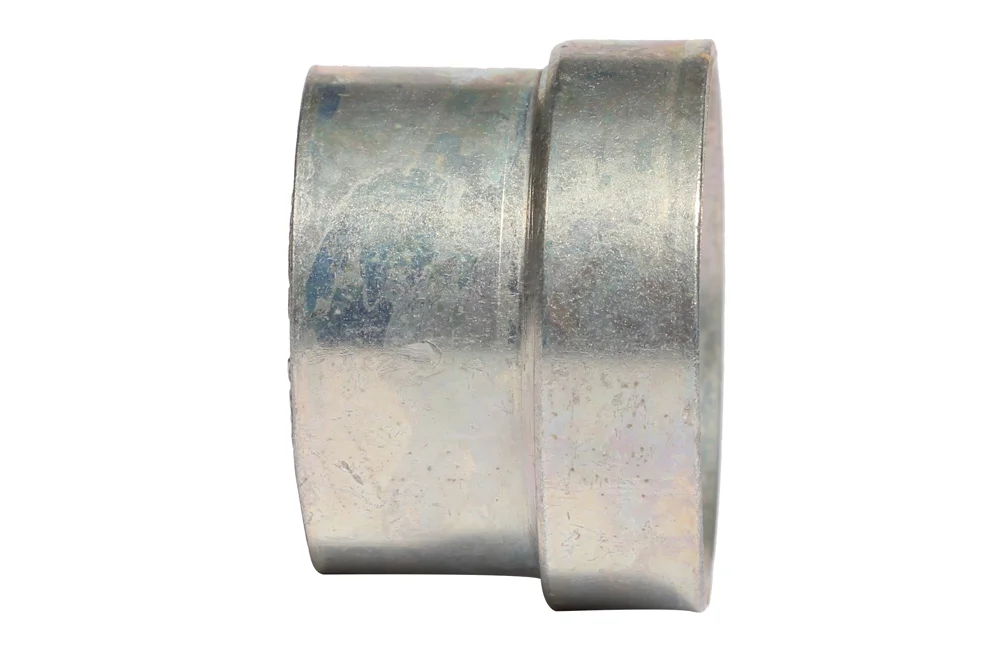

Boccola di pressione in acciaio al carbonio, tipo FM

Additional information

Materiale	CS – acciaio (ghisa)

Boccola di pressione, tipo FM, inserita nel dado, consente la corretta compressione del tubo metrico sul raccordo. Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
HJ-FM-06	Boccola 6 mm	6	-	In stock	Richiesta
HJ-FM-08	Boccola 8 mm (5/16")	8	-	In stock	Richiesta
HJ-FM-10	Boccola 10 mm	10	-	In stock	Richiesta
HJ-FM-12	Bussola 12 mm	12	-	In stock	Richiesta
HJ-FM-14	Boccola 14 mm	14	-	In stock	Richiesta
HJ-FM-15	Boccola 15 mm	16	-	In stock	Richiesta
HJ-FM-16	Boccola da 16 mm (5/8")	16	-	In stock	Richiesta
HJ-FM-18	Boccola 18 mm	18	-	In stock	Richiesta
HJ-FM-20	Boccola 20 mm	20	-	In stock	Richiesta
HJ-FM-22	Boccola 22 mm	22	-	In stock	Richiesta
HJ-FM-25	Boccola 25 mm	25	-	In stock	Richiesta
HJ-FM-30	Boccola 30 mm	30	-	In stock	Richiesta
HJ-FM-32	Boccola 32 mm	32	-	In stock	Richiesta
HJ-FM-38	Boccola 38 mm	38	-	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Boccola di pressione, tipo FM, inserita nel dado, consente la corretta compressione del tubo metrico sul raccordo. Materiale: acciaio al carbonio, zincato.

Additional information

Materiale	CS – acciaio (ghisa)

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
