Is the Adaptor - plug with GZ NPT, carbon steel, type A313 compatible with standard NPT fittings and sealed on the external thread?

Yes. The Adaptor - plug with GZ NPT, carbon steel, type A313 is designed with an external NPT thread and is sealed on the thread, so it is compatible with standard female NPT fittings. Made of carbon steel and galvanized, it provides a high-pressure plug connection that relies on the tapered NPT thread form to achieve a pressure-tight seal when properly tightened (often with thread sealant or tape as required by the application). Ensure mating female fitting has matching NPT size and that installation torque and any recommended sealant are applied per specifications for a reliable seal.

Does the Adaptor - plug with GZ NPT, carbon steel, type A313 require thread sealant for leak-free external NPT connection?

Yes. The product description for Adaptor - plug with GZ NPT, carbon steel, type A313 states "seal on the thread," which indicates the plug is intended to seal via the threaded NPT connection. For reliable, leak-free external NPT joints you should still use an appropriate thread sealant (PTFE tape or pipe dope) applied per manufacturer recommendations to ensure proper assembly, account for thread imperfections, and provide a durable seal under pressure.

Can Adaptor - plug with GZ NPT, carbon steel, type A313 withstand high-pressure applications safely?

Yes. but with important conditions. Adaptor - plug with GZ NPT, carbon steel, type A313 is designed for high-pressure use: it has an external NPT thread that seals on the thread and is made of carbon steel with galvanised coating, which gives good mechanical strength and some corrosion resistance. However, safe use in high-pressure applications depends on these factors: - Pressure rating: Confirm the specific maximum working pressure (MWP) or class from the manufacturer or datasheet. NPT thread plugs and carbon steel can handle high pressures, but allowable pressure varies with size, thread engagement, and heat treatment. - Thread engagement and installation: Proper torque and full thread engagement are required to achieve a reliable NPT thread seal. Over- or under-tightening can cause leaks or thread damage. - Seal reliability: NPT is a tapered metal thread seal; for high-pressure systems, use of appropriate thread sealant or PTFE tape rated for the pressure and fluid is recommended. For critical applications, consider using an additional mechanical seal or a plug with a dedicated gasket. - Material compatibility: Carbon steel is strong but susceptible to corrosion with certain fluids (e.g., seawater, some chemicals). Galvanisation improves corrosion resistance but may be inadequate for aggressive media or high-temperature environments. - Temperature and media: High temperature reduces material strength and may affect the sealant. Ensure the plug, galvanisation, and any sealant are compatible with operating temperature and fluid. - Safety margins and standards: Verify compliance with relevant standards (e.g., ASME, ANSI) and apply appropriate safety factors. For safety-critical or extreme-pressure systems, prefer fittings rated and certified for the exact operating conditions. - Inspection and maintenance: Regular inspection for leaks, thread wear, and corrosion is essential. Replace plugs showing damage or degradation. Conclusion: Adaptor - plug with GZ NPT, carbon steel, type A313 can be used safely in high-pressure applications if its specified pressure rating matches the system, installation is correct, materials and sealants are compatible with the fluid and temperature, and applicable standards and safety practices are followed. For critical or extreme conditions, obtain manufacturer certification or choose a plug specifically rated for the required pressure and environment.

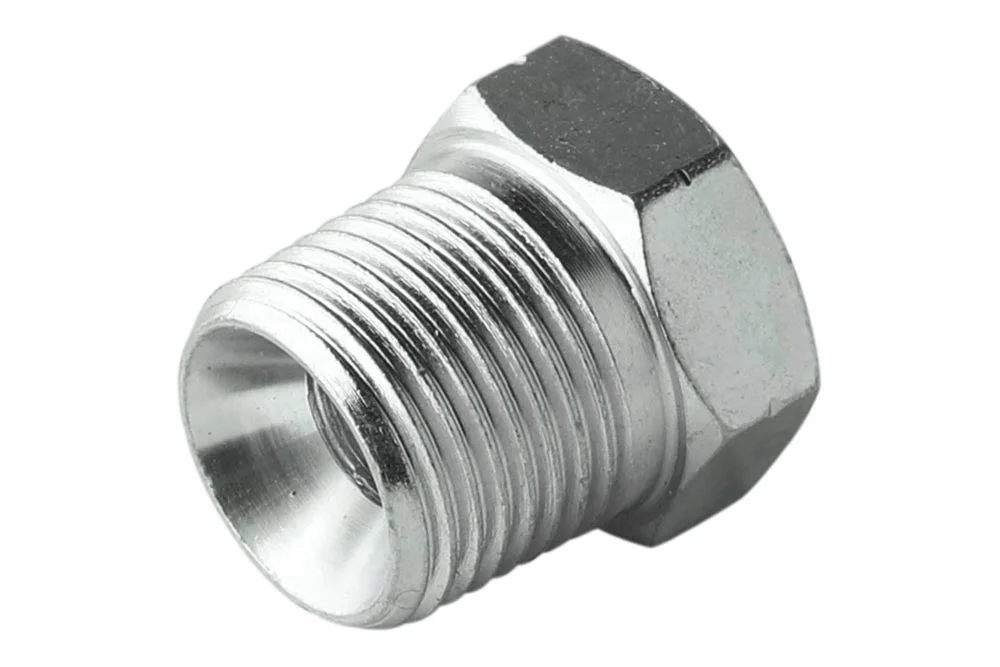

Adattatore – tappo con GZ NPT, acciaio al carbonio, tipo A313

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

Adattatore – tappo alta pressione tipo A313 con filetto esterno NPT (tenuta su filetto). Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A313-02	Tappo GZ NPT 1/8	-	345	In stock	Richiesta
TI-A313-04	Tappo maschio NPT 1/4	-	345	In stock	Richiesta
TI-A313-06	Tappo GZ NPT 3/8	-	276	In stock	Richiesta
TI-A313-08	Tappo GZ NPT 1/2"	-	241	In stock	Richiesta
TI-A313-12	Tappo GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A313-16	Tappo GZ NPT 1"""	-	138	In stock	Richiesta
TI-A313-20	Tappo GZ NPT 1.1/4	-	112	In stock	Richiesta
TI-A313-24	Tappo GZ NPT 1.1/2"	-	86	In stock	Richiesta
TI-A313-32	Korek GZ NPT 2"""	-	78	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore – tappo alta pressione tipo A313 con filetto esterno NPT (tenuta su filetto). Materiale: acciaio al carbonio, zincato.

Additional information

Materiale	CS – acciaio (ghisa)

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
