Is the Adaptor - cap with GW NPT, stainless steel, type A314 compatible with high-pressure systems when made from AISI 316L and using internal NPT thread with thread seal?

Yes . Adaptor - cap with GW NPT, stainless steel, type A314 made from AISI 316L with an internal NPT thread and thread seal is suitable for high-pressure systems, with the following conditions met: - Material suitability: AISI 316L stainless steel provides excellent corrosion resistance and good mechanical strength for many high-pressure applications; it is commonly used in pressure equipment and corrosive environments. - Thread type and sealing: Internal NPT (tapered pipe thread) plus a proper thread seal (PTFE tape, paste or dedicated sealant) can provide a pressure-tight connection when correctly installed and torqued. - Design limits: Compatibility depends on the specific working pressure and temperature of your system vs. the componentâs rated pressure. The A314 plug must be rated for the maximum operating pressure and temperature of your system; check manufacturer pressure ratings and relevant standards. - Installation and inspection: Use correct thread engagement, sealing method, and torque; avoid overstressing threads. Inspect for leaks and follow applicable codes (ASME, PED, etc.) and safety factors. - Media and environment: Confirm chemical compatibility of AISI 316L and thread sealant with the process media and operating conditions. Conclusion: Functionally compatible if the A314 plugâs certified pressure/temperature ratings and installation practices match your high-pressure system requirements.

Does the Adaptor - cap with GW NPT, stainless steel, type A314 support pressure ratings for AISI 316L with internal NPT and thread seal?

Yes. Adaptor - cap with GW NPT, stainless steel, type A314 supports pressure ratings for AISI 316L with internal NPT and thread seal, since it is described as Adaptor - high-pressure plug type A314 with internal NPT thread (thread seal). Material: AISI 316L steel. Pressure capability follows the AISI 316L material and high-pressure plug design; ensure you verify the specific pressure rating from the manufacturerâs datasheet or application conditions (temperature, thread engagement, sealing method) for exact limits.

Can Adaptor - cap with GW NPT, stainless steel, type A314 (AISI 316L, internal NPT, thread seal) be used in corrosive environments?

Yes. Adaptor - cap with GW NPT, stainless steel, type A314 (AISI 316L, internal NPT, thread seal) can be used in many corrosive environments, but suitability depends on the specific corrosive agents, concentrations, temperatures and mechanical conditions. Why itâs generally suitable: - Material: AISI 316L (low-carbon 316 stainless steel) offers good corrosion resistance versus chlorides and many chemicals compared with 304 stainless steel. It resists pitting and crevice corrosion better and is commonly specified for marine, chemical and food-industry applications. - Design: As a high-pressure cap with internal NPT and thread seal, it reduces crevice exposure if properly sealed and installed. Limitations and considerations: - Chloride-rich, highly acidic or oxidizing environments (e.g., concentrated chlorides, strong acids like HCl, H2SO4 at high concentration and temperature, or bromides/iodides) can still cause pitting, crevice corrosion or stress-corrosion cracking in 316L. For very aggressive media, duplex stainless steels, nickel alloys (e.g., Hastelloy) or titanium may be required. - Temperature and concentration: Elevated temperatures and higher chemical concentrations reduce 316L resistance. Check metallurgical charts or corrosion data for the specific medium vs. temperature. - Mechanical and galvanic factors: Mechanical stress, cyclic loading, or contact with dissimilar metals (galvanic corrosion) can worsen performance. Proper installation, torque and compatible mating materials matter. - Thread seal: The quality and chemical compatibility of the thread sealant (PTFE, anaerobic sealant, etc.) must match the process fluid and temperature. Recommendation: Confirm the exact corrosive medium, concentration, temperature, pressure and surrounding materials. If conditions are moderate (typical seawater, low-to-moderate chloride levels, many chemicals at ambient temperature), Adaptor - cap with GW NPT, stainless steel, type A314 is usually suitable. For highly aggressive conditions, consult corrosion data or a materials engineer to consider higher-alloy alternatives.

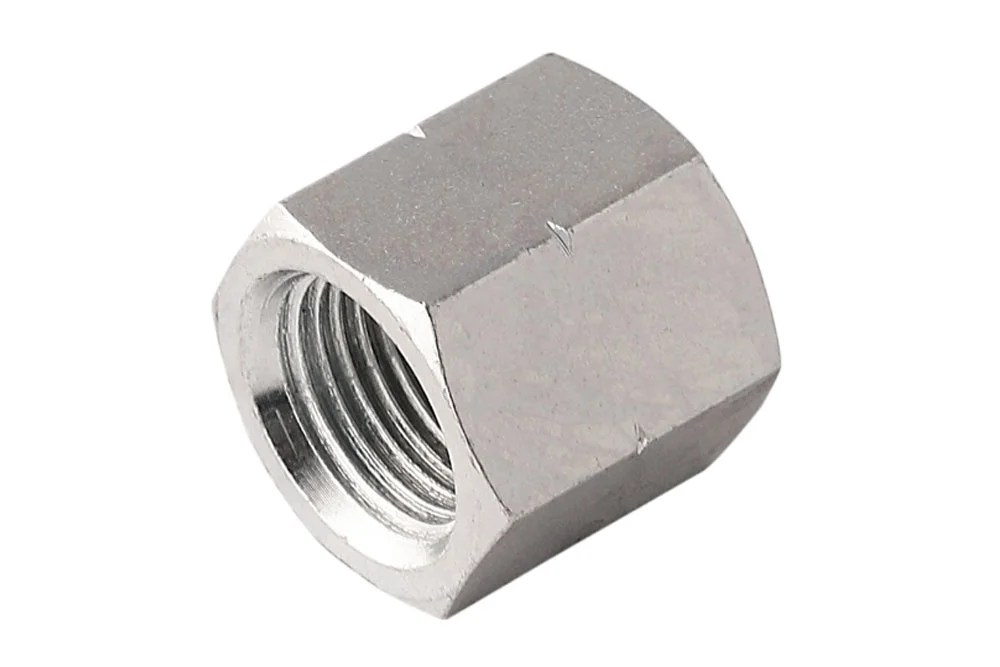

Adattatore – tappo con filettatura interna NPT, acciaio inox, tipo A314

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	SS – acciaio inox
Lunghezza standard [m]	10

Adattatore – tappo ad alta pressione tipo A314 con filettatura interna NPT (tenuta filettata). Materiale: acciaio AISI 316L.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A314-02-SS	Tappo filettato femmina NPT 1/8", AISI 316	-	345	In stock	Richiesta
TI-A314-04-SS	Tappo cieco filettato femmina NPT 1/4", AISI 316	-	345	In stock	Richiesta
TI-A314-06-SS	Tappo cieco GW NPT 3/8", AISI 316	-	276	In stock	Richiesta
TI-A314-08-SS	Tappo filettato femmina NPT 1/2", AISI 316	-	241	In stock	Richiesta
TI-A314-12-SS	Tappo filettato femmina NPT 3/4", AISI 316	-	155	In stock	Richiesta
TI-A314-16-SS	Tappo filettato femmina NPT 1", AISI 316	-	138	In stock	Richiesta
TI-A314-20-SS	Tappo cieco femmina NPT 1.1/4", AISI 316	-	112	In stock	Richiesta
TI-A314-24-SS	Tappo cieco femmina NPT 1.1/2", AISI 316	-	86	In stock	Richiesta
TI-A314-32-SS	Tappo cieco GW NPT 2", AISI 316	-	78	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore – tappo ad alta pressione tipo A314 con filettatura interna NPT (tenuta filettata). Materiale: acciaio AISI 316L.
