Is Adaptor R12/R134 RETROFIT with GW UNF, steel compatible with both R12 and R134a systems without the valve and securing nut?

Adaptor R12/R134 RETROFIT with GW UNF, steel is designed as a retrofit adapter with an internal UNF thread for automotive air conditioning. It is made of carbon steel and supplied without the valve and securing nut. Compatibility: mechanically the adapter can connect to fittings of both R12 and R134a service ports that use the corresponding UNF thread form, but it does not by itself make an R12 system safe or correct to use with R134a (or vice versa). Critical points: - The adapter lacks the valve and securing nut, so you must fit the correct valve core and nut for the refrigerant/service standard before use. - R12 and R134a have different sealing, pressure, oil, and temperature characteristics; proper conversion requires correct fittings, service procedures, lubricant and possibly system component changes. - Using this steel adapter only provides the physical threaded connection; compatibility in service depends on correct additional parts and proper retrofit procedures. Conclusion: Adaptor R12/R134 RETROFIT with GW UNF, steel is physically compatible with both R12 and R134a UNF-threaded ports as a mechanical adapter, but it is not a complete retrofit solution . you must install the proper valve, securing nut and follow appropriate conversion steps for safe and correct refrigerant use.

Can Adaptor R12/R134 RETROFIT with GW UNF, steel be used with different hose fittings and adapters in automotive A/C systems?

Adaptor R12/R134 RETROFIT with GW UNF, steel can be used with different hose fittings and adapters in automotive A/C systems only if those fittings share the same UNF internal thread size and are compatible with retrofit service ports. Because the adaptor has no valve or securing nut, you must ensure the mating fitting provides a proper sealing surface and mechanical retention. Material (carbon steel) is suitable for A/C service but check for corrosion protection and compatibility with refrigerants and oils. Always verify thread standard (UNF pitch/diameter), pressure rating, leak-tightness, and that the combination complies with vehicle and service-gas conversion requirements; improper mating can cause leaks or system damage.

Does Adaptor R12/R134 RETROFIT with GW UNF, steel require any special thread sealant or torque specs for installation?

Adaptor R12/R134 RETROFIT with GW UNF, steel: For installation of this carbon-steel adapter (internal UNF thread, automotive A/C use, no valve or securing nut), follow these general guidelines: - Thread sealant: Use a refrigerant-safe, non-reactive thread sealant. PTFE tape (Teflon) specifically rated for refrigerant systems or a non-hardening, refrigerant-compatible pipe thread sealant is acceptable. Avoid sealants that contain oils or acids that could contaminate the A/C system or react with refrigerant/lubricant. Do not use pipe dope that cures hard or leaves residues that could shear into the system. - Torque specs: There is no universal torque value supplied for this retrofit adapter; torque depends on thread size, material, and mating fitting. Tighten to a snug, leak-free fit without over-torquing. As a guideline for small UNF fittings common in A/C service (consult exact thread size if known), typical torque ranges fall roughly between 10â30 NÂ·m (7â22 ftÂ·lb). Start at the lower end and increase gradually while checking for leaks. If possible, refer to the vehicle manufacturerâs or fitting manufacturerâs torque chart for the specific UNF size. - Best practices: - Clean threads of debris and oil before applying sealant. - Apply PTFE tape in the direction of thread engagement, 2â3 wraps, avoiding tape on the first thread to prevent contamination. - Use appropriate tools and protect hex surfaces to prevent rounding. - After assembly, pressure-test the system and check with electronic leak detector or soapy solution. - If joining dissimilar metals or where galvanic corrosion is a concern, consider anti-seize on external threads (but not inside the refrigerant flow path). When in doubt, consult the adapter supplier or vehicle service documentation for specific sealant recommendations and torque values for the exact UNF thread size.

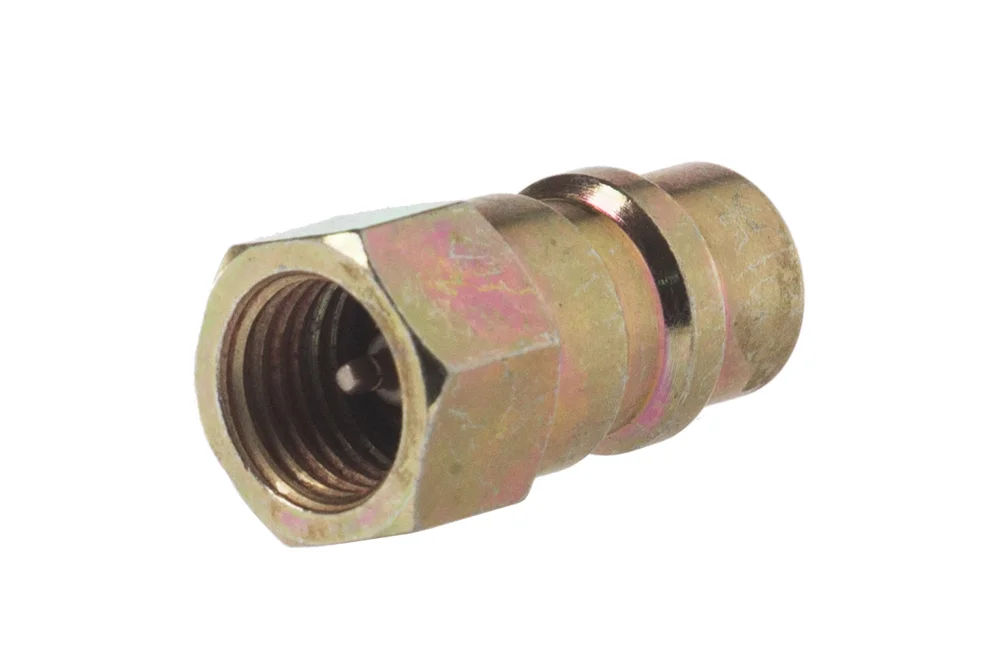

Adattatore R12/R134 RETROFIT con filettatura interna UNF, acciaio

Tubi e raccordi per condizionamento, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

Adattatore R12/R134 RETROFIT con filettatura interna UNF per impianti di climatizzazione automobilistica (senza valvola e dado di sicurezza). Materiale: acciaio al carbonio.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
BU-7034-S	Adattatore R12/R134 retrofit 16 mm con filettatura femmina 3/8"-24, acciaio	-	-	In stock	Richiesta
BU-7035-S	Adattatore R12/R134 retrofit 13 mm con filetto interno 7/16"-20, acciaio	-	-	In stock	Richiesta
BU-7036-S	Adattatore R12/R134 retrofit 16 mm con filettatura femmina 7/16"-20, acciaio	-	-	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore R12/R134 RETROFIT con filettatura interna UNF per impianti di climatizzazione automobilistica (senza valvola e dado di sicurezza). Materiale: acciaio al carbonio.

Additional information

Materiale	CS – acciaio (ghisa)
