Does the Adaptor - nipple GZ NPT, carbon steel, type A301 support repeated assembly/disassembly without thread sealant failure?

Adaptor - nipple GZ NPT, carbon steel, type A301: The A301 is a high-pressure hydraulic adapter with external NPT threads where the seal is achieved on the thread. Carbon steel, galvanized construction gives good mechanical strength and corrosion resistance. Repeated assembly/disassembly can be performed, but NPT is a tapered, interference-type thread that relies on metal-to-metal contact plus a thread sealant (or tape) to achieve a leak-tight joint. Each make/break cycle can wear the mating surfaces and the sealant film; improper reapplication of sealant or damaged thread crests/roots increases leak risk. For reliable repeated use: inspect threads for nicks, galling or deformation; clean old sealant fully; reapply appropriate high-pressure thread sealant or PTFE tape rated for hydraulic service and the operating pressure/fluids; avoid over-tightening which can strip or deform threads. If threads show visible damage or if service requires frequent cycles, consider using a removable sealing method recommended by the manufacturer or replacing the adapter to ensure leak-free performance. In short: repeated assembly/disassembly is possible but requires careful inspection and proper reapplication of suitable thread sealant each time to prevent seal failure.

Can Adaptor - nipple GZ NPT, carbon steel, type A301 maintain leak-free sealing under varying pressure cycles?

Adaptor - nipple GZ NPT, carbon steel, type A301 can provide leak-free sealing under varying pressure cycles only if installation and operating conditions are appropriate. The A301 is a high-pressure hydraulic adapter with external NPT threads where the seal is achieved on the thread; carbon steel, galvanized construction offers strength and corrosion resistance. NPT thread sealing relies on proper torque, suitable thread sealant (pipe dope or PTFE tape rated for hydraulic service), correct thread engagement, and compatibility with system pressures and media. Repeated pressure cycling can loosen fittings or fatigue threads if vibration, over-torquing, misalignment, or corrosive media are present. For reliable, leak-free service under cyclic pressures, follow manufacturer torque specs, use approved sealants, inspect for wear/corrosion, and perform periodic retightening or replacement as needed.

Is Adaptor - nipple GZ NPT, carbon steel, type A301 compatible with standard NPT-thread sealants and torque specs?

Yes. Adaptor - nipple GZ NPT, carbon steel, type A301 with external NPT threads (seal on the thread) is compatible with standard NPT-thread sealants and conventional torque practices, with these considerations: - Sealant compatibility: Because the sealing surface is the tapered NPT thread, use common pipe thread sealants designed for NPT (PTFE tape rated for hydraulic use, anaerobic pipe sealants, or pipe joint compounds). Ensure the sealant is compatible with carbon steel and the hydraulic fluid in your system. - Application: Apply sealant to the male (external) threads only. For PTFE tape, wrap 2â4 wraps in the direction of thread engagement, avoiding excess tape on the first thread to prevent contamination. For paste/sealant, apply a thin, even coat. - Torque/spec: Type A301 is a high-pressure hydraulic adapter; follow manufacturer torque recommendations when available. If no specific torque is provided, use standard torque ranges for carbon-steel NPT fittings of the same nominal size and thread class, tightened to achieve proper thread crush and sealing without overstressing the fitting. Typical practice: hand-tight plus 1â3 turns with a wrench for smaller sizes, with larger sizes requiring calibrated torque values based on diameter (consult torque tables). Avoid excessive torque that can strip threads or crack the fitting. - Inspection and testing: After assembly, pressure-test the connection per system requirements and check for leaks. If disassembly is needed, clean old sealant and inspect threads for damage before reassembly. Summary: Adaptor - nipple GZ NPT, carbon steel, type A301 is intended to seal on the tapered NPT threads and is compatible with standard NPT thread sealants and standard torque practicesâuse sealants suitable for carbon steel and your hydraulic fluid, follow manufacturer torque if given, and pressure-test after assembly.

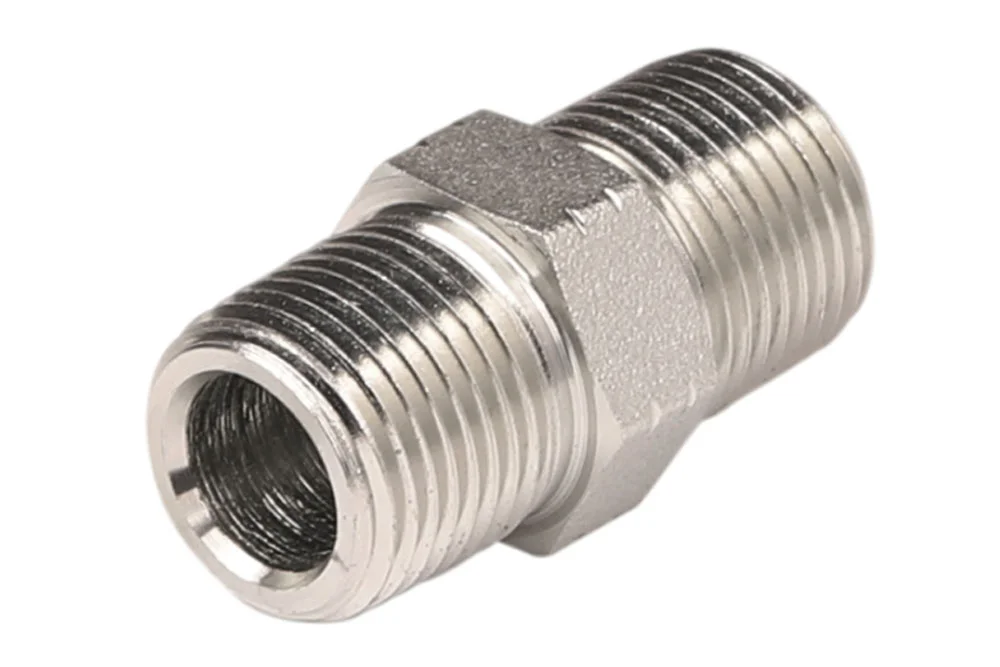

Adattatore – nipplo GZ NPT, acciaio al carbonio, tipo A301

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

Adattatore idraulico alta pressione tipo A301 con filetti esterni NPT (tenuta sul filetto). Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A301-02-02	Adattatore GZ NPT 1/8" / GZ NPT 1/8"	-	345	In stock	Richiesta
TI-A301-02-04	Adattatore GZ NPT 1/8" / GZ NPT 1/4"	-	345	In stock	Richiesta
TI-A301-02-06	Adattatore GZ NPT 1/8" / GZ NPT 3/8"	-	276	In stock	Richiesta
TI-A301-04-04	Adattatore GZ NPT 1/4" / GZ NPT 1/4"	-	345	In stock	Richiesta
TI-A301-04-06	Adattatore GZ NPT 1/4" / GZ NPT 3/8"	-	276	In stock	Richiesta
TI-A301-04-08	Adattatore GZ NPT 1/4" / GZ NPT 1/2"	-	241	In stock	Richiesta
TI-A301-04-12	Adattatore GZ NPT 1/4" / GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A301-06-06	Adattatore GZ NPT 3/8" / GZ NPT 3/8"	-	276	In stock	Richiesta
TI-A301-06-08	Adattatore GZ NPT 3/8" / GZ NPT 1/2"	-	241	In stock	Richiesta
TI-A301-06-12	Adattatore GZ NPT 3/8" / GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A301-08-08	Adattatore GZ NPT 1/2" / GZ NPT 1/2"	-	241	In stock	Richiesta
TI-A301-08-12	Adattatore GZ NPT 1/2" / GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A301-08-16	Adattatore GZ NPT 1/2" / GZ NPT 1"	-	138	In stock	Richiesta
TI-A301-12-12	Adattatore GZ NPT 3/4" / GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A301-12-16	Adattatore GZ NPT 3/4" / GZ NPT 1"	-	138	In stock	Richiesta
TI-A301-16-16	Adattatore GZ NPT 1" / GZ NPT 1"	-	138	In stock	Richiesta
TI-A301-16-20	Adattatore GZ NPT 1" / GZ NPT 1.1/4"	-	112	In stock	Richiesta
TI-A301-16-24	Adattatore GZ NPT 1" / GZ NPT 1.1/2"	-	86	In stock	Richiesta
TI-A301-20-20	Adattatore GZ NPT 1.1/4" / GZ NPT 1.1/4"	-	112	In stock	Richiesta
TI-A301-20-24	Adattatore GZ NPT 1.1/4" / GZ NPT 1.1/2"	-	86	In stock	Richiesta
TI-A301-24-24	Adattatore GZ NPT 1.1/2" / GZ NPT 1.1/2"	-	86	In stock	Richiesta
TI-A301-24-32	Adattatore GZ NPT 1.1/2" / GZ NPT 2"	-	78	In stock	Richiesta
TI-A301-32-32	Adattatore GZ NPT 2" / GZ NPT 2"	-	78	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore idraulico alta pressione tipo A301 con filetti esterni NPT (tenuta sul filetto). Materiale: acciaio al carbonio, zincato.
