Does the Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604 require additional sealing compound despite its BSP internal thread seal and 60Â° metric cone?

Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604 does not normally require additional sealing compound. It is designed with an internal BSP thread where sealing occurs on the thread and an external metric thread that seals via a 60Â° cone. Proper assembly.clean, undamaged threads and cone, correct torque, and alignment.provides the intended metal-to-metal and thread seal. Exceptions where extra sealant may be considered: - If threads or cone are damaged, corroded, or contaminated, a compatible sealant can help ensure leak-tightness. - If dynamic movement, vibration, or thermal cycling is expected, a suitable thread sealant or PTFE tape may improve long-term reliability. - If the application has aggressive fluids or extremely high pressures outside normal specifications, consult manufacturer guidance for approved sealants or alternative fittings. When using any sealant, ensure compatibility with carbon steel and the system fluid, and avoid applying sealant to the cone sealing surface. Follow manufacturer torque and installation instructions.

Can Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604 withstand high-pressure cycling without extra thread sealant?

Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604: The A604 is designed with an internal BSP thread that seals on the thread and an external metric thread that seals via a 60Â° cone. For highâpressure cycling, the cone seat provides a reliable metalâtoâmetal seal under repeated loading, and the threaded BSP internal seal is intended to seal without additional sealant in normal hydraulic service. However, cyclic pressure and vibration increase the risk of loosening, microleakage or galling on carbon steel. For critical highâcycle, highâpressure applications, best practice is to use a suitable thread locking method or compatible sealant specified by the system designer, verify torque values, and perform pressure cycling tests. If installation follows manufacturer torque and surface condition recommendations, many installations will hold without extra thread sealant, but confirmation by testing is advised.

Is the BSP internal thread and 60Â° cone on Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604 suitable for reuse after disassembly?

Adaptor - Hydraulic reduction GW BSP x GZ METRIC, carbon steel, type A604: The BSP internal thread and the 60Â° cone are not recommended for reuse after disassembly if their sealing relies on the thread and cone surfaces being undamaged. The internal BSP thread in this adaptor is a pressure seal on the thread; repeated assembly/disassembly can deform, gall, or wear the thread crests and flanks, compromising seal integrity and increasing leak risk. The external metric connection seals on a 60Â° cone; cones require pristine, undamaged seating surfaces and correct surface finish to form a reliable metal-to-metal seal. Any scratches, nicks, deformation, corrosion or loss of plating (galvanization) from initial use or disassembly can prevent proper sealing. Recommended practice: inspect both thread and cone visually and by feel for damage, corrosion, wear or loss of plating; check for burrs, flattening or galling; if any defects present, replace the adaptor. If both thread and cone are undamaged, cleaning and applying appropriate assembly procedures (correct torque, sealing compound only if specified by manufacturer) may allow safe reuse in low-risk applications, but for high-pressure or critical systems replacement is the safe choice. If available, follow manufacturerâs reuse/replacement guidance and torque specifications.

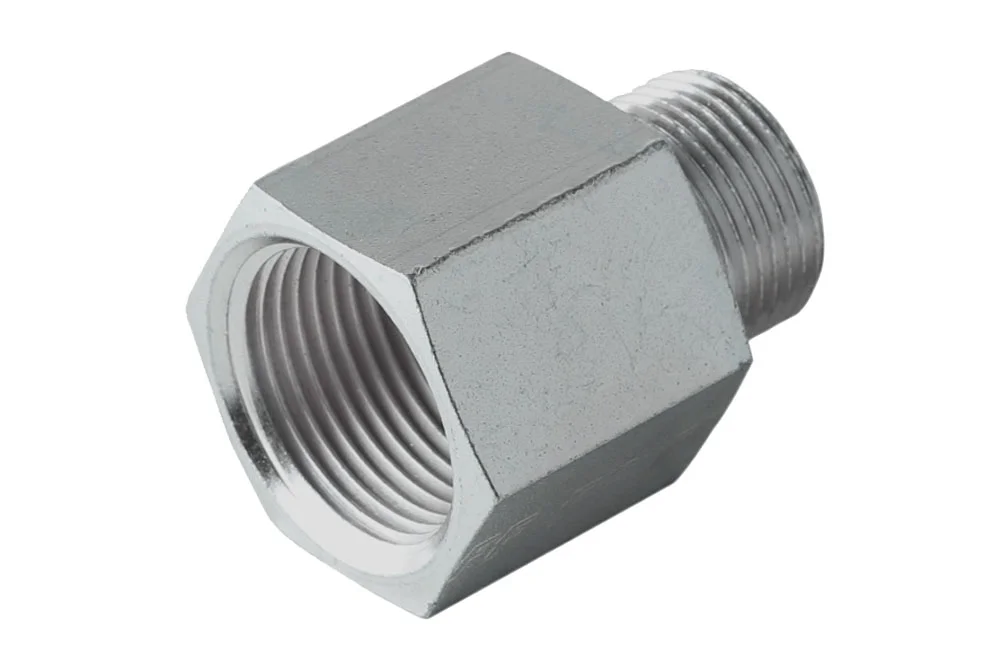

Adattatore – riduzione idraulica GW BSP x GZ METRICO, acciaio al carbonio, tipo A604

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

Adattatore alta pressione tipo A604 con filettature interne BSP (tenuta sul filetto) e filettature esterne metriche (tenuta conico 60°). Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A604-04-12	Adattatore GW BSP 1/4" / GZ M12x1,5	-	350	In stock	Richiesta
TI-A604-04-14	Adattatore GW BSP 1/4" / GZ M14x1,5	-	350	In stock	Richiesta
TI-A604-06-14	Adattatore GW BSP 3/8" / GZ M14x1,5	-	250	In stock	Richiesta
TI-A604-06-16	Adattatore GW BSP 3/8" / GZ M16x1,5	-	250	In stock	Richiesta
TI-A604-06-18	Adattatore GW BSP 3/8" / GZ M18x1,5	-	250	In stock	Richiesta
TI-A604-08-18	Adattatore GW BSP 1/2" / GZ M18x1,5	-	225	In stock	Richiesta
TI-A604-08-20	Adattatore GW BSP 1/2" / GZ M20x1,5	-	225	In stock	Richiesta
TI-A604-08-22	Adattatore GW BSP 1/2" / GZ M22x1,5	-	225	In stock	Richiesta
TI-A604-12-22	Adattatore GW BSP 3/4" / GZ M22x1,5	-	200	In stock	Richiesta
TI-A604-12-26	Adattatore filettato femmina BSP 3/4" / maschio M26x1,5	-	200	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore alta pressione tipo A604 con filettature interne BSP (tenuta sul filetto) e filettature esterne metriche (tenuta conico 60°). Materiale: acciaio al carbonio, zincato.

Additional information

Materiale	CS – acciaio (ghisa)

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
