Is the Adaptor with GW BSP, stainless steel, type A105 compatible with fluids at pressures above 600 bar and does the 60Â° cone swivel nut ensure leak-free connection?

Adaptor with GW BSP, stainless steel, type A105 . based on the provided description (high-pressure adaptor type A105 with internal BSP threads, swivel nut with 60Â° cone seal, material AISI 316L) . can be suitable for fluids at pressures above 600 bar only if the specific productâs pressure rating and testing certify that working pressure. AISI 316L offers excellent corrosion resistance and mechanical strength for demanding fluids, and a 60Â° cone swivel nut is a standard metal-to-metal sealing geometry that, when manufactured and assembled correctly, can provide a reliable, leak-tight connection under very high pressures. However, leak-free performance at >600 bar depends on: - the adaptorâs certified maximum working pressure (must be â¥ your operating pressure), - correct thread engagement and torque, appropriate mating counterpart (matching BSP and cone seat dimensions), - surface finish and hardness, and any required sealing procedures (cleanliness, correct alignment), - compatibility of fluid with AISI 316L and any dynamic effects (pressure spikes, vibration, temperature), and - manufacturer testing/certification and applicable standards. Conclusion: The design (AISI 316L + 60Â° cone swivel nut) is appropriate for high-pressure service, but you must confirm the adaptorâs rated working pressure and certifications for >600 bar and ensure proper installation and compatible mating components to guarantee a leak-free connection.

Can the Adaptor with GW BSP, stainless steel, type A105 withstand corrosive fluids and maintain sealing at high temperatures?

Yes. The Adaptor with GW BSP, stainless steel, type A105 is made of AISI 316L, a low-carbon stainless steel with excellent resistance to many corrosive fluids (chlorides, seawater, acids and many process chemicals), so it is suitable for corrosive environments where 316L is compatible. The 60Â° cone swivel-nut seal provides reliable metal-to-metal sealing under high pressure and elevated temperatures; however, maximum temperature and chemical compatibility depend on the specific fluid, pressure, and any seal or gasket materials used in the system. For aggressive chemicals, very high temperatures, or critical leak-tightness requirements, verify service conditions against 316L limits and consult manufacturer data or perform compatibility and pressure-temperature ratings for the assembly before use.

Does the Adaptor with GW BSP, stainless steel, type A105 require specific torque values for the 60Â° cone swivel nut?

Adaptor with GW BSP, stainless steel, type A105 does not include specific torque values for the 60Â° cone swivel nut in the provided description. The data given. "High-pressure adaptor type A105 with internal BSP threads, featuring a swivel nut (60Â° cone seal). Material: AISI 316L steel". identifies geometry, seal type and material but omits assembly torque specifications. Recommendation: - Follow general industry practice for 60Â° cone BSP swivel fittings: apply torque sufficient to compress the cone to form a metal-to-metal seal without deforming components. Typical guidance is to hand-tighten then apply a specified number of wrench flats turns (often 1â2 turns) or use published torque tables from the fitting or equipment manufacturer. - For safety and leak-free performance, obtain and use the torque values from the adaptor manufacturer, system pressure rating, or relevant standards (e.g., BSP fitting torque charts, EN/ISO standards) or contact the supplier for precise torque instructions. - If manufacturer data is unavailable, perform a controlled assembly test at operating pressure with inspection for leaks, and adopt a documented torque or assembly procedure validated for your application. Conclusion: No specific torque values are provided in the description; use manufacturer-supplied torque data or conform to validated industry procedures for 60Â° cone BSP swivel nuts.

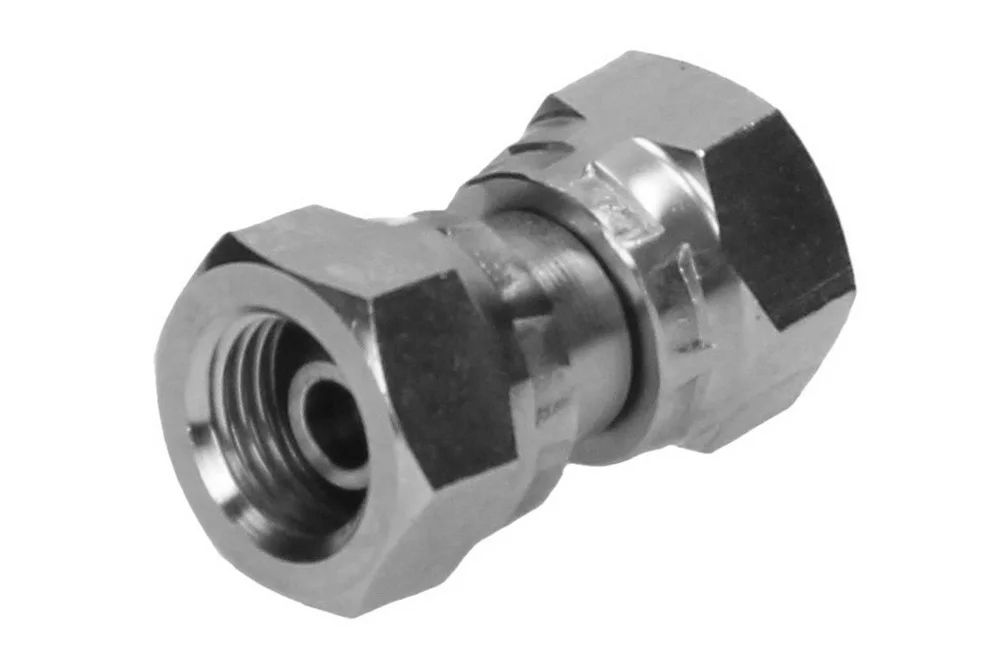

Adattatore con GW BSP, acciaio inox, tipo A105

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	SS – acciaio inox

Adattatore alta pressione tipo A105 con filetti interni BSP, dotato di dado girevole (tenuta a cono 60°). Materiale: acciaio AISI 316L.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A105-02-SS	Adattatore GW BSP 1/8" / GW BSP 1/8", AISI 316	-	400	In stock	Richiesta
TI-A105-04-SS	Adattatore filettato femmina BSP GAS 1/4" / BSP GAS femmina 1/4", AISI 316	-	400	In stock	Richiesta
TI-A105-06-SS	Adattatore GW BSP 3/8" / GW BSP 3/8", AISI 316	-	400	In stock	Richiesta
TI-A105-08-SS	Adattatore GW BSP 1/2" / GW BSP 1/2", AISI 316	-	350	In stock	Richiesta
TI-A105-12-SS	Adattatore filettato femmina BSP 3/4" / femmina BSP 3/4", AISI 316	-	315	In stock	Richiesta
TI-A105-16-SS	Adattatore GW BSP 1" / GW BSP 1", AISI 316	-	250	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore alta pressione tipo A105 con filetti interni BSP, dotato di dado girevole (tenuta a cono 60°). Materiale: acciaio AISI 316L.

Additional information

Materiale	SS – acciaio inox

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA
