Is the Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206 suitable for use with hydraulic systems operating above 3000 psi?

Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206 may be suitable for hydraulic systems above 3000 psi only if its pressure rating and sealing method meet the system requirements. The description indicates: high-pressure 90Â° elbow, external BSP thread with 60Â° cone seal and external NPT thread with thread seal, made of galvanized carbon steel. Important considerations: - Pressure rating: The provided text does not specify a maximum working pressure (PSI). âHigh-pressureâ is not a substitute for a certified pressure rating. You must confirm the manufacturerâs maximum allowable working pressure (MAWP) or rated PSI for type A206 before using it above 3000 psi. - Seals and thread types: The BSP 60Â° cone provides a metal-to-metal cone seal suitable for many high-pressure applications if properly tightened and within rated limits. NPT relies on thread sealant/tape; NPT joints are generally less reliable at very high pressures compared to 60Â° cone or dedicated hydraulic fittings unless specifically rated for that pressure and properly assembled. - Material and corrosion protection: Carbon steel (galvanized) is common for hydraulic fittings, but galvanization can affect fitting tolerances and is not always suitable for all hydraulic fluids or environments; verify compatibility. - Standards and certification: Ensure the adaptor conforms to relevant hydraulic standards (e.g., ISO, SAE) and has test/certification data for >3000 psi service. - Safety margin and assembly: Use proper torque, sealing materials rated for the pressure/fluid, and consider proof testing. Conclusion: Do not assume suitability solely from the description. Verify the manufacturerâs rated pressure, compatibility of BSP cone and NPT thread sealing methods for >3000 psi, material compatibility, and applicable certifications. Only use if the adaptorâs documented MAWP exceeds 3000 psi and it is installed per specifications.

Can the Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206 be used with corrosive fluids or environments?

Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206 is made of carbon steel with galvanization. Galvanized carbon steel offers some corrosion resistance for mild environments, but it is not suitable for strongly corrosive fluids or highly aggressive environments (acidic, alkaline, chloride-rich, or seawater) or where long-term corrosion resistance is required. For corrosive fluids or harsh environments, choose fittings made of more corrosion-resistant materials (e.g., stainless steel grades, duplex, or special alloys) or appropriate coatings and confirm chemical compatibility and service conditions (temperature, pressure, concentration) with the manufacturer.

Does the Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206 support assembly with stainless steel fittings?

Adaptor - elbow 90Â° from GZ BSP/GZ NPT, carbon steel, type A206: The description states the adaptor is made of carbon steel and galvanized, with external BSP (60Â° cone seal) and external NPT (thread seal) threads. It does not explicitly mention compatibility or approval for assembly with stainless steel fittings. General guidance based on materials and sealing types: - Mechanical compatibility: BSP and NPT thread types and sizes must match or be adapted; mixing BSP (parallel/cone) and NPT threading requires careful selection of mating fittings or adapters. The A206 provides BSP cone and NPT thread on its endsâensure the stainless steel fittingâs male/female type, size, and sealing method correspond. - Galvanized carbon steel to stainless steel: Galvanized carbon steel can be assembled with stainless steel fittings, but beware of galvanic corrosion in certain environments (presence of electrolytes, moisture, aggressive media). Galvanic risk is higher when dissimilar metals contact and an electrolyte is present. - Sealing methods: The 60Â° cone (BSP cone) relies on metal-to-metal cone sealingâstainless steel mating cones generally form a good seal with carbon steel cone. NPT thread seal (tapered, often sealed with PTFE tape or sealant) works with stainless steel threads as long as thread form and sealant are suitable. - Pressure and application: For high-pressure applications verify pressure ratings, thread engagement, and material compatibility (media, temperature). Galvanized coating may not be acceptable for certain fluids or temperatures; stainless mating parts may have different thermal/mechanical properties. Conclusion: The product description does not explicitly confirm support for assembly with stainless steel fittings, but in practice assembly is possible if thread types/sizes match and proper sealing methods are used. Evaluate galvanic corrosion risk, media compatibility, pressure ratings, and applicable standards before use; consult manufacturer or technical datasheet for confirmation and recommended mating materials.

Adattatore – gomito 90° da GZ BSP/GZ NPT, acciaio al carbonio, tipo A206

Adattatori ad alta pressione, Tutti i prodotti/

Additional information

Materiale	CS – acciaio (ghisa)

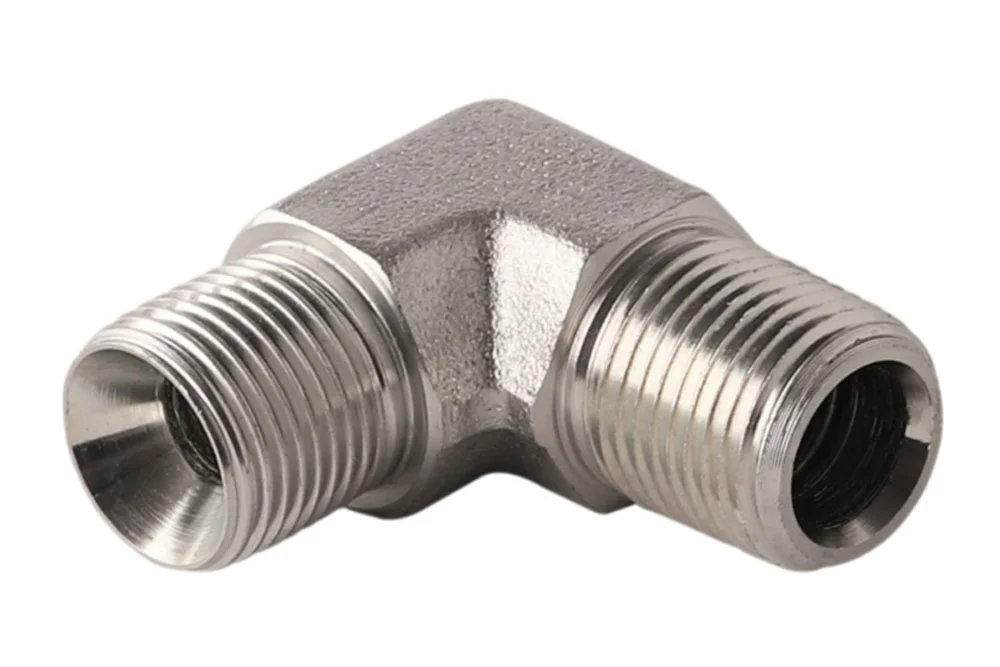

Adattatore, gomito 90° alta pressione tipo A206, con filetto esterno BSP (tenuta a cono 60°) e filetto esterno NPT (tenuta sul filetto). Materiale: acciaio al carbonio, zincato.

Elenco delle varianti di prodotto

Codice articolo	Nome variante prodotto	DN	BAR	Disponibilità	Azioni
TI-A206-02-02	Adattatore 90Â° GZ BSP 1/8" / GZ NPT 1/8"	-	345	In stock	Richiesta
TI-A206-04-02	Adattatore 90Â° GZ BSP 1/4" / GZ NPT 1/8"	-	345	In stock	Richiesta
TI-A206-04-04	Adattatore a 90Â° GZ BSP 1/4" / GZ NPT 1/4"	-	345	In stock	Richiesta
TI-A206-06-04	Adattatore 90Â° GZ BSP 3/8" / GZ NPT 1/4"	-	250	In stock	Richiesta
TI-A206-06-06	Adattatore 90Â° GZ BSP 3/8" / GZ NPT 3/8"	-	250	In stock	Richiesta
TI-A206-06-08	Adattatore 90Â° GZ BSP 3/8" / GZ NPT 1/2"	-	241	In stock	Richiesta
TI-A206-08-06	Adattatore 90Â° GZ BSP 1/2" / GZ NPT 3/8"	-	225	In stock	Richiesta
TI-A206-08-08	Adattatore 90Â° GZ BSP 1/2" / GZ NPT 1/2"	-	225	In stock	Richiesta
TI-A206-12-08	Adattatore a 90Â° GZ BSP 3/4" / GZ NPT 1/2"	-	200	In stock	Richiesta
TI-A206-12-12	Adattatore a 90Â° GZ BSP 3/4" / GZ NPT 3/4"	-	155	In stock	Richiesta
TI-A206-16-16	Adattatore 90Â° GZ BSP 1" / GZ NPT 1"	-	138	In stock	Richiesta
TI-A206-16-20	Adattatore 90Â° GZ BSP 1" / GZ NPT 1.1/4"	-	112	In stock	Richiesta
TI-A206-24-24	Adattatore a 90Â° GZ BSP 1.1/2" / GZ NPT 1.1/2"	-	86	In stock	Richiesta
TI-A206-32-32	Adattatore 90Â° GZ BSP 2" / GZ NPT 2"	-	78	In stock	Richiesta

Hai bisogno di una quantità maggiore di prodotti o di un'offerta personalizzata?

Chiamaci: +39 348 811 3340 o scrivici: m.ceriani@tubes-international.com

INVIA RICHIESTA

Adattatore, gomito 90° alta pressione tipo A206, con filetto esterno BSP (tenuta a cono 60°) e filetto esterno NPT (tenuta sul filetto). Materiale: acciaio al carbonio, zincato.

Additional information

Materiale	CS – acciaio (ghisa)
